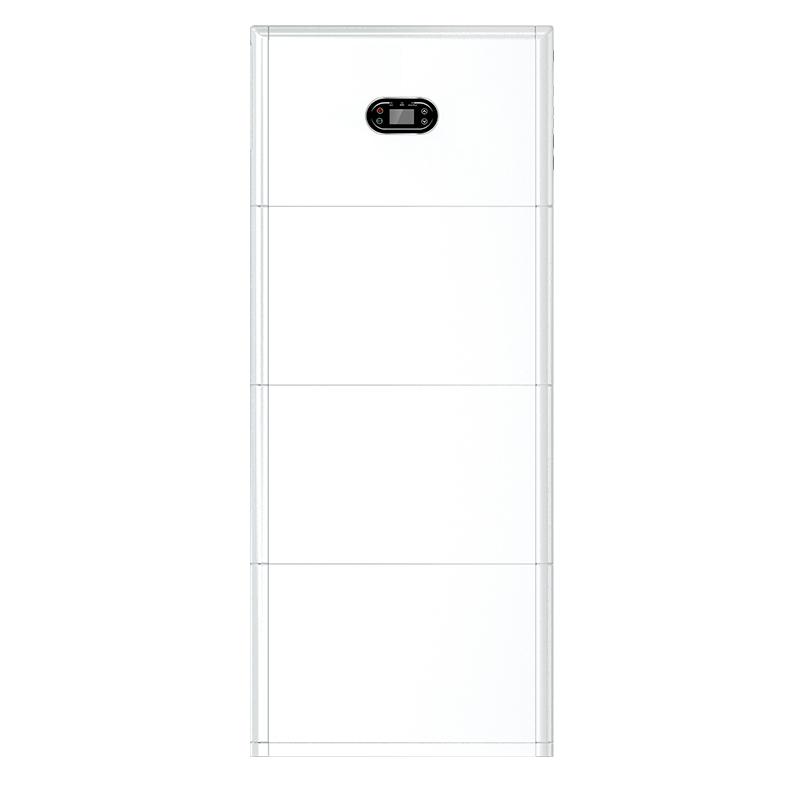

51.2V Single Phase Energy Storage All In One System XD3-6KTL-AIO

Energy Storage System XD3-6KTL-AIO

The XD3-6KTL-AIO single-phase all-in-one energy storage system combines the inverter and battery in a sleek, unified design that seamlessly complements any home setting. Offering various operational modes, it helps lower electricity bills by optimizing power usage during peak and off-peak times. With 1.5x off-grid peak output, it can easily power high-demand appliances such as air conditioners, providing reliable performance. This system delivers a superior energy experience, ensuring constant peace of mind for users.

Enecell is China All In One Home Energy Systems Manufacturer and Single Phase Energy Storage System Factory,The XD3-6KTL-AIO single-phase energy storage all-in-one system integrates inverter and energy storage battery, with exquisite appearance, which can be perfectly integrated into the home environment; plug and play, easy to install, saving installation time and cost; built-in lithium battery, support expansion and customization, to meet various household load requirements; support remote adjustment of parameters, working mode and remote upgrade, real-time control of the operating status of the all-in-one system, saving on-site operation and maintenance costs; integrated self-generation and self-use, peak shaving and valley filling, battery priority and on-grid switching and other modes,

Product Advantages

Efficient & Higher Revenue

˙ Max. efficiency 97.5%

˙ 2 MPP trackers, 160% DC input oversizing

˙ Max. charging/discharging current 100A for faster power backup

˙ Max. PV input current 16A, compatible with high-power modules



Reliable & Worry-Free

˙ DC & AC Type II SPD: prevent lightning damage

˙ High ingress protection rating of IP65: supports outdoor installation

˙ Smart I-V Curve Diagnosis Function: locate PV string faults accurately and automatically detect faults

˙ EPS Switching Under 10ms, UPS-level switching



Flexible & Abundant Configuration

˙ Easy-install, quick-stack design

˙ Modular design allows for scalability and customization

˙ Multiple working modes and support parallel access to PV, batteries, normal loads, EV chargers, and grids

˙ Support RS485/CAN/WiFi/4G/LAN/Bluetooth optional: remote monitoring and operation via PC or mobile phones





Product Highlights

•
  Modular stacking design
•
  supporting expansion and customization
•
   dual MPPT design

•
  1.6x DC over-provisioning
•
  Charge and discharge current

•
  EPS switching time




Application Scenarios







Specification



Technical Data
Input（Battery）
Battery Type	LFP
Battery Energy	5.12kWh		10.24kWh		15.36kWh
Number of Batteries	1		2		3
Dimension (W x H x D)	640 x 875 x 210 mm		640 x 1250 x 210 mm		640 x 1625 x 210 mm
Battery Voltage	51.2V
Voltage Range	43.2V ~ 56.16V
Max. Charging / Discharging Current	100A
Inverter Module	XD3KTL-AIO	XD3K6TL-AIO	XD4KTL-AIO	XD4K6TL-AIO	XD5KTL-AIO	XD6KTL-AIO
Input（PV）
Max. PV Input Power	4.5kW	5.4kW	6kW	6.9kW	7.5kW	9kW
Max. PV Input Voltage	600V
Start-up Voltage	100V
MPPT Voltage Range	100V~550V
Number of MPP Trackers / String per MPPT	2 / 1
Max. PV Input Current	16A
Max. Short Circuit Current per MPPT	24A
Output（AC）
Rated Output Power	3kW	3.68kW	4kW	4.6kW	5kW	6kW
Max. Output Power	3.3kVA	3.68kVA	4.4kVA	4.6kVA	5.5kVA	6kVA
Max. Output Current	15A	16A	20A	20.9A	22.7A	26.1A
Rated Voltage	230V
Rated Frequency	50Hz / 60Hz
THDi(@Rated Power)	＜3%
Power Factor	0.8 leading~0.8 lagging
Output（EPS）
Max. Output Power	3kVA	3.68kVA	4kVA	4.6kVA	5kVA	6kVA
Max. Output Current	15A	16A	20A	20.9A	22.7A	30A
Peak Output Power，Time	4.5kW, 10s	5.5kW, 10s	6kW, 10s	6.9kW, 10s	7.5kW, 10s	7.5kW, 10s
Rated Voltage，Frequency	230V, 50Hz
THDv (@Rated Power)	＜3%
Switch Time	＜10ms
Efficiency
Max. Efficiency	97.50%
EU Efficiency	97.20%
Max. Battery Charge/Discharge Efficiency	95.00%
Protection
Protection	DC Reverse Polarity Protection, Insulation Resistance Monitoring, Group Fault Monitoring, Over Current / Over  Voltage Protection, Battery Soft Start Protection
AFCI Protection	Optional
Surge Protection	Type II
General Data
Operating Temperature Range	-10℃～+40℃
Self-consumption	＜10 W
Protection Degree	IP65
Relative Humidity	0 ~ 100%
Display	LCD
Communication	RS485 / CAN / WIFI / 4G / LAN / Bluetooth
Max. Operating Altitude	4000m
Cooling Method	Natural
