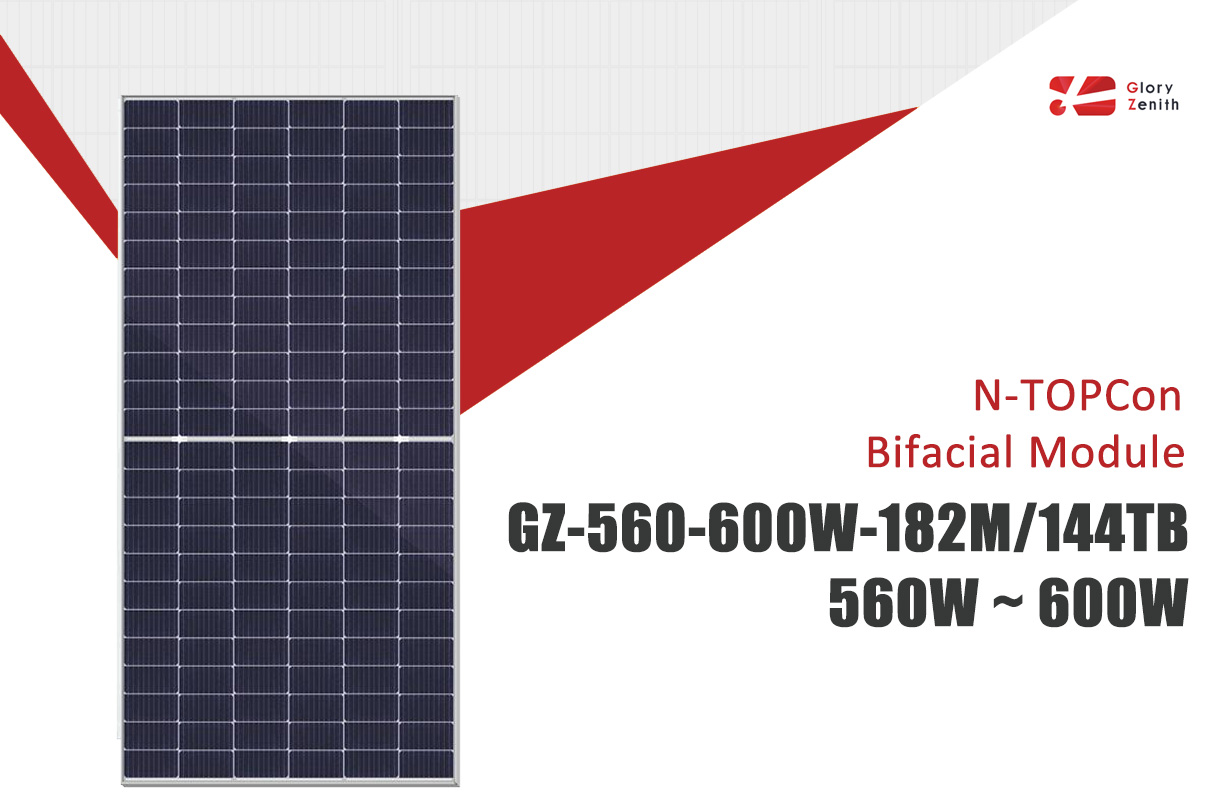

Glory Zenith N-type Topcon Bifacial Monocrystalline Solar Panels 560W 600W with Light Redirecting Film, Non-Destructive Cutting, Laser Welding, Enhanced Bifaciality, and High Reliability – delivering maximum efficiency and durability for superior solar performance.
Item NO. :
GZ-560-600W-182M/144TBMono TOPCon :
144 CELLPower output :
560-600WpMax System Voltage :
1500V DCSize (mm) :
2279×1134×35/30Warranty :
25 YearMOQ :
≥200Power :
7kW/8kW/10kWPayment :
T/TLead Time :
30 DaysApplicable Scenarios :
Household and commercial photovoltaic projectsCertificate :
IEC61215/IEC61730/IEC61701/IEC62716/WEEE De93315506 CE CEI CQCVoltage :
230V560W-600W TOPCon N Type Bifacial Monocrystalline Solar Panel PV Module
Our 560W-600W Bifacial Monocrystalline Solar Panels are designed for maximum efficiency and durability. Featuring Light Redirecting Film for enhanced light absorption, Non-Destructive Cutting for precise cell integrity, and Laser Welding for robust connections, these panels deliver superior performance. With Enhanced Bifaciality, they capture energy from both sides, increasing output even in low-light conditions. Built for High Reliability, they are perfect for both residential and commercial applications, providing a long-lasting, efficient solar solution.
Low-light Performance
Excellent performance in low light.
Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance certified by TUV NORD.
EL Full Inspection
Dual-stage 100% EL Inspection.
Higher Power Output
Module power increases by 5-25% generally, bringing significantly lower LCOE and higher IRR. 0-5w positive tolerance output warranty.
Multi Busbar Technology
By improving optical utilization rate, power increases by 2~3% and efficiency increases by 0.4~0.6%.
PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and material control.
Bifacial Monocrystalline Module
Dimensions of PV Module

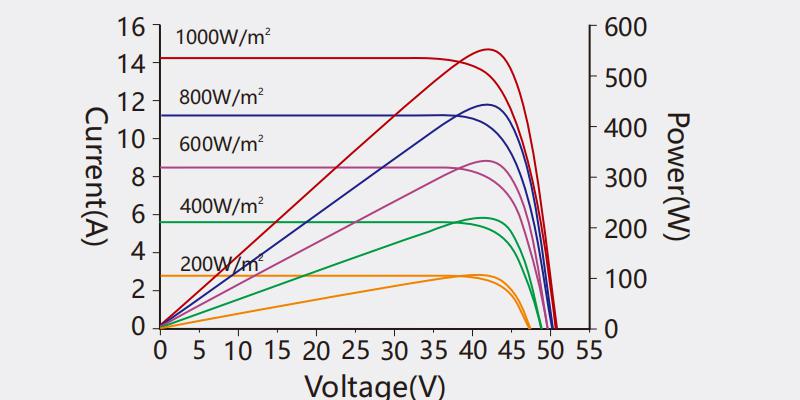

I-V characteristics at different irradiations
Cells temp.=25°C

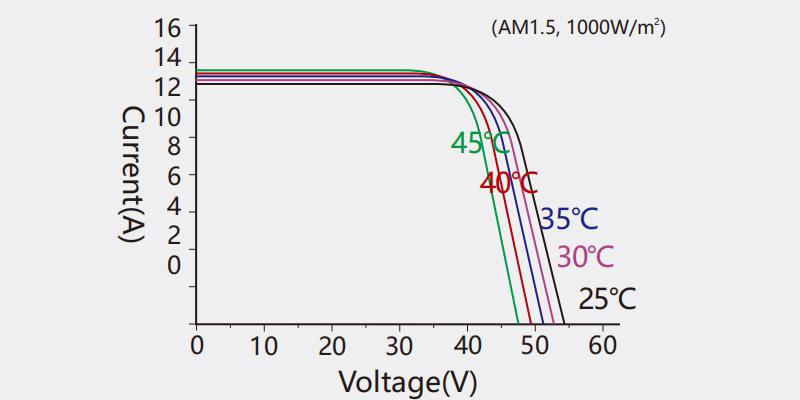

I-V characteristics at different temperatures
Specification
ELECTRICAL CHARACTERISTICS (STC*)
| Rated Power in Watts-Pmax(Wp) | 560 | 565 | 570 | 575 | 580 | 585 | 590 | 595 | 600 |
| Open Gircuit Voltage-Voc(V) | 52.45 | 52.61 | 52.77 | 52.93 | 53.09 | 53.25 | 53.41 | 53.57 | 53.73 |
| Short Circuit Curent-lsc(A) | 13.47 | 13.55 | 13.62 | 13.69 | 13.76 | 13.83 | 13.89 | 13.95 | 14.01 |
| Max Power Voltage-Vmpp(V) | 44.12 | 44.26 | 44.39 | 44.61 | 44.84 | 45.06 | 45.28 | 45.50 | 45.72 |
| Max.Power Curent-Impp(A) | 12.71 | 12.79 | 12.85 | 12.90 | 12.95 | 13.00 | 13.06 | 13.12 | 13.18 |
| Module Effidency(%) | 21.67 | 21.86 | 22.06 | 22.25 | 22.44 | 22.6 | 22.8 | 23.02 | 23.22 |
| Maximum system voltage | 1500V DC | ||||||||
| Fuse Rating(A) | 30 | ||||||||
| Temperature coefficient Pmax | -0.29%/℃ | ||||||||
| Temperature coefficient Isc | 0.045%/℃ | ||||||||
| Temperature coefficient Voc | -0.25%/℃ | ||||||||
| Refer.Bifacial Factor | 80±5% | ||||||||
*STC: Irradiance 1000W/m², module temperature 25℃, AM=1.5
WORKING CHARACTERISTICS (NOCT*)
| Rated Power in Watts-Pmax(Wp) | 421 | 425 | 429 | 432 | 436 | 440 |
| Open Circuit Voltage-Voc(V | 48.13 | 48.32 | 48.51 | 48.70 | 48.89 | 49.08 |
| Short Circuit Curent-Isc(A) | 11.41 | 11.46 | 11.50 | 11.55 | 11.60 | 11.65 |
| Max.Power Voltage-Vmpp(V) | 39.39 | 39.52 | 39.65 | 39.78 | 39.87 | 40.00 |
| Max.Power Current-Impp(A) | 10.69 | 10.75 | 10.81 | 10.87 | 10.94 | 11.01 |
| Power tolerance | 0~+3% | |||||
| NOCT | 45℃±2℃ | |||||
| Operating Temperature | -40℃~85℃ | |||||
*NOCT: lrradiance 800W/m², ambient temperature 20℃, wind speed 1m/s
Electrical characteristics with different rear side power gain
| Pmax/W | Voc/V | Isc/A | Vmpp/V | Impp/A | |
| 5% | 630 | 53.73 | 14.71 | 45.72 | 13.84 |
| 10% | 660 | 53.73 | 15.41 | 45.72 | 14.50 |
The additional gain from the rear side compared to the power of the front side at the standard test condition.
It depends on mounting (structure, height, tilt angle etc.) and albedo of the ground.
MECHANICAL CHARACTERISTICS
| Number of cells | 144pcs | Type of frame | Anodized Aluminum Alloy |
| Type of cell | N-TOPCon Mono | Size of module(mm) | 2279×1134×35 |
| Thickness of glass(mm) | 2.0 | Weight(kg) | 32 |
| Junction box | IP68,1500V DC,3 Diodes | Cables/connectors 4.0mm²,MC4 compatible | |
| Length of Cable | +300mm/-200mm | Length can be customized (connector included) | |
PACKAGING CONFIGURATION
| Height of Modules (mm) | 35 | 30 |
| Number of Modules Per Pallet | 31 | 36 |
| Packaging Box Dimensions (I×w×h)(mm) | 2300×1120×1260 | 2300×1120×1260 |
| Box Gross Weight (kg) | 1020 | 1180 |
| Number of Modules Per 40ft (HQ)Container | 620 | 720 |
| Number of Pallets Per 40ft (HQ)Container | 20 | 20 |
Certification
IEC61215/IEC61730/IEC61701/IEC62716/WEEE De93315506 CE CEI CQC
We offer high efficiency N-Topcon Bifacial Monocrystalline PV Modules, 700W Solar Panels, is designed to deliver superior energy performance. It boosts power with Light Redirecting Film, enhancing light absorption for increased energy output. The Non-Destructive Cutting process ensures excellent cell integrity, while precise laser welding guarantees long-lasting durability. With high bifacial efficiency, this panel captures sunlight from both sides, maximizing energy generation even in low-light conditions. Offering reliable energy output and enhanced module safety, it is the perfect solution for both residential and commercial solar installations.
