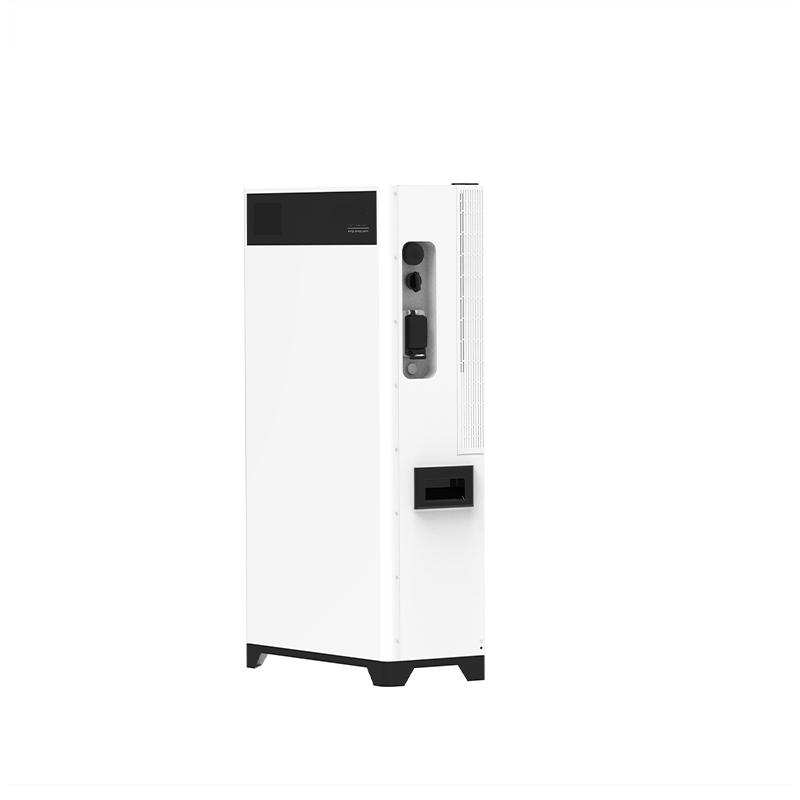

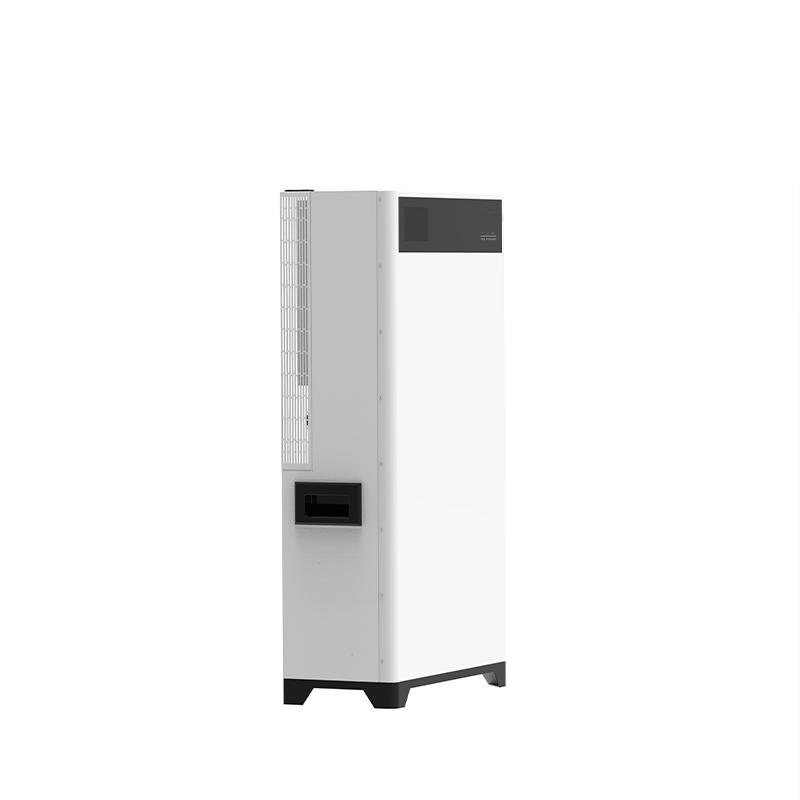

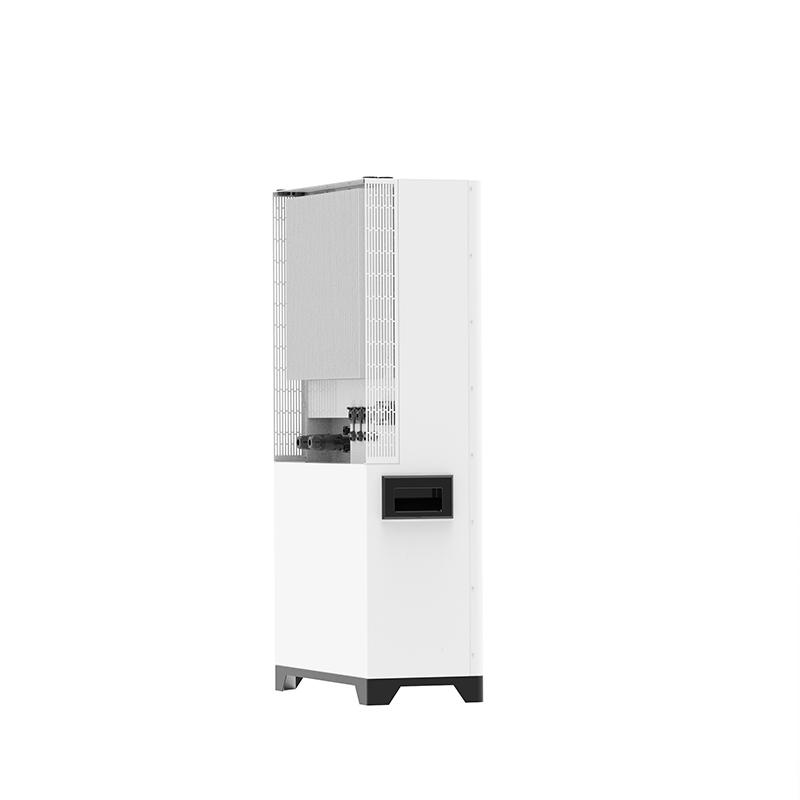

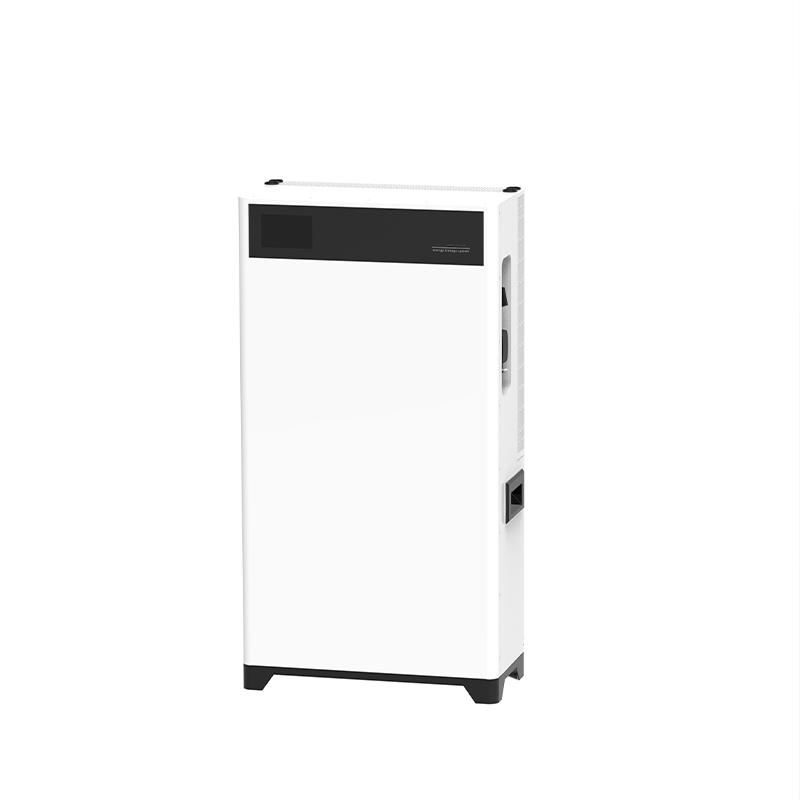

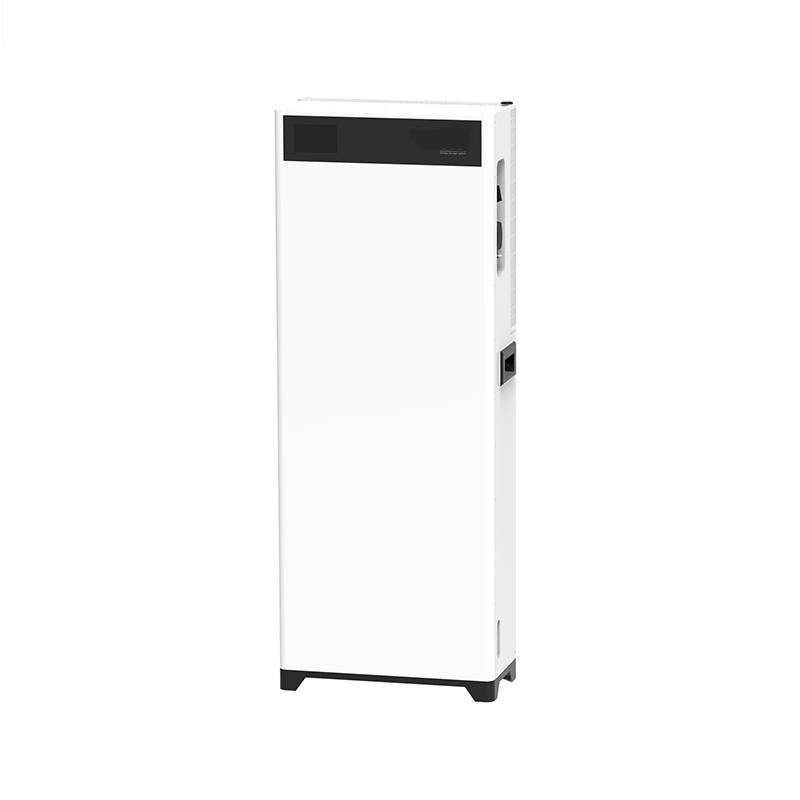

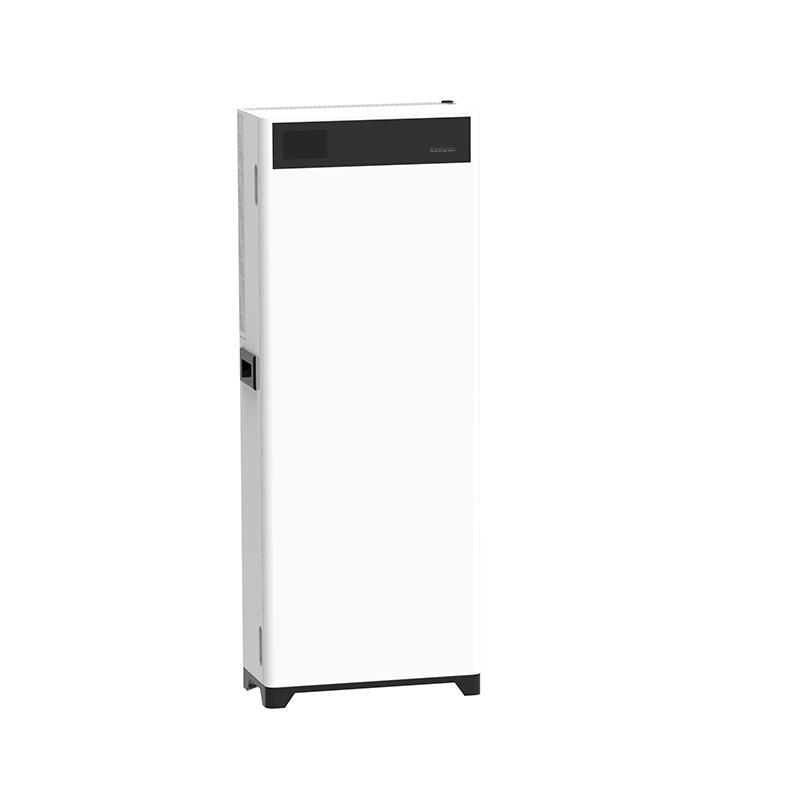

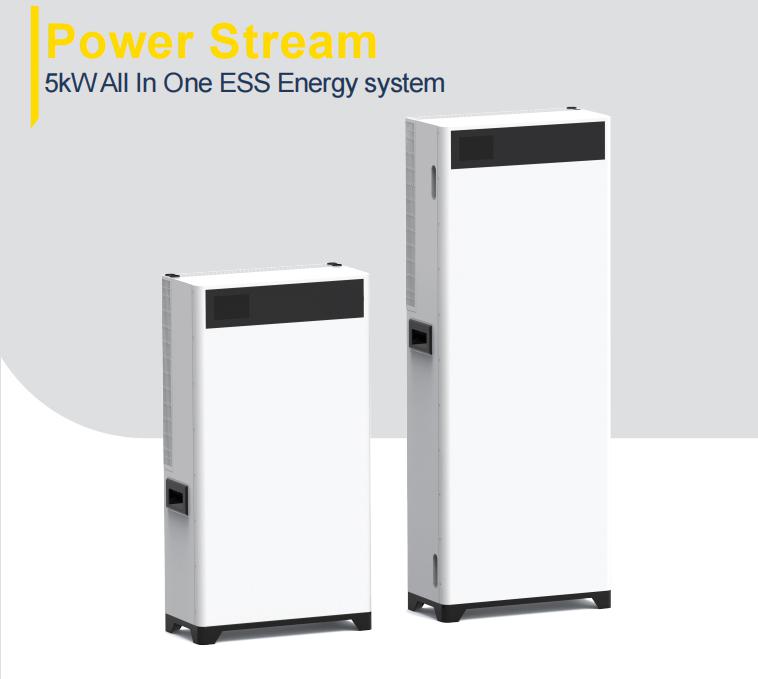

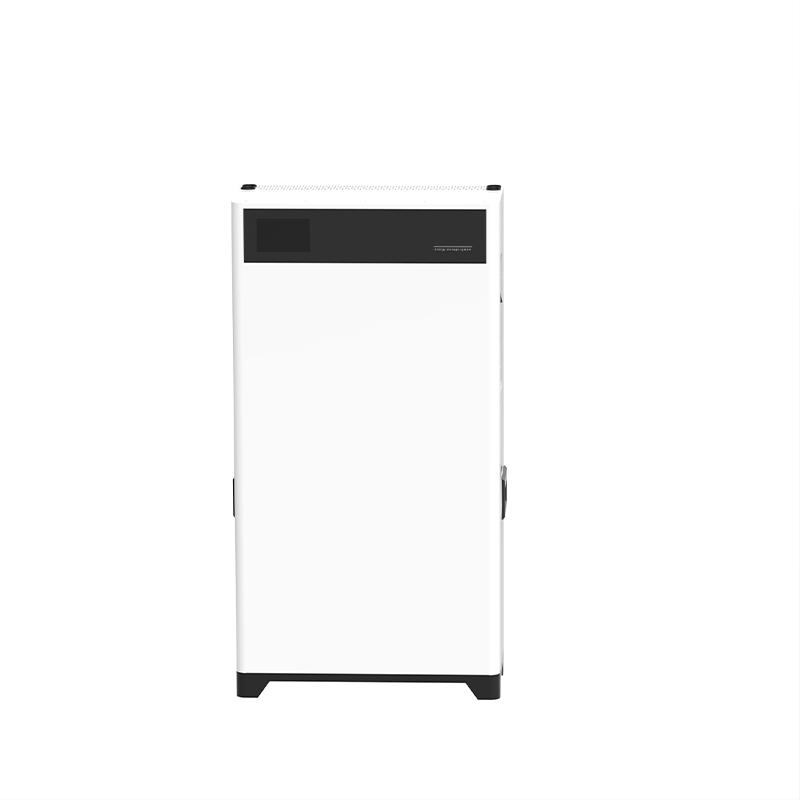

5kW Vertical Type All-in-One Home Solar Energy Storage System CFE-PS10/20
⚡Integrated design of battery and inverter
⚡Easier and more convenient installation
⚡Simple and beautiful appearance, it looks more like a home appliance when placed at home
⚡Mobile monitoring software to check the device status at any time
Item NO. :
CFE-PS10/20Warranty :
5 yearsMOQ :
≥5Power :
3kW/3.68kW/4kW/4.6kW/5kW/6kWPayment :
T/TLead Time :
30 daysApplicable Scenarios :
Home Energy StorageCertificate :
UN/CE/CEIVoltage :
230V
Leading technology
Easy to use: adopts advanced integrated energy storage technology, battery PCS integrated design, easy and quick installation and commissioning.
High quality and competitive price
Long-life design: high-quality lithium iron phosphate batteries and components, carefully designed and manufactured, have a long service life, reducing maintenance and replacement costs.
Ultra-safe and reliable
Safety measures: equipped with multiple safety measures, such as high-precision insulation testing, to ensure safety in the process of use.
Efficient management

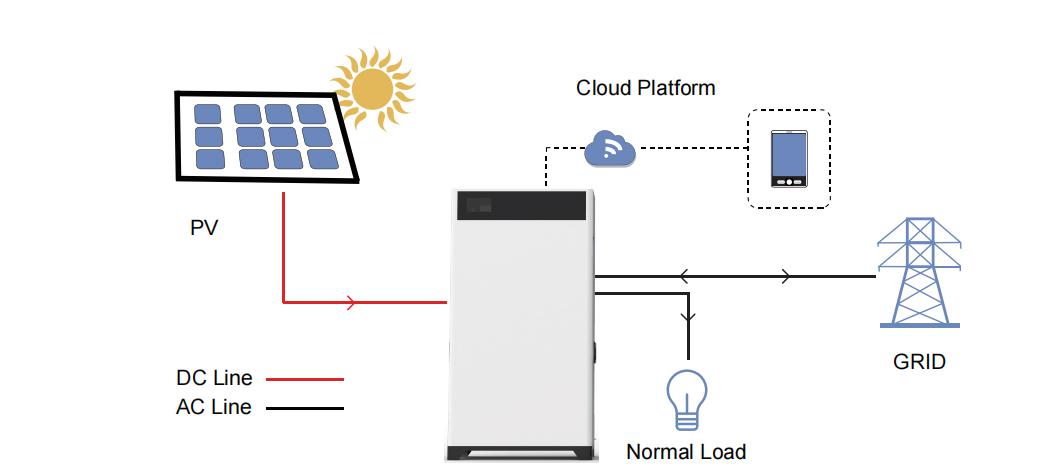

Work Scene

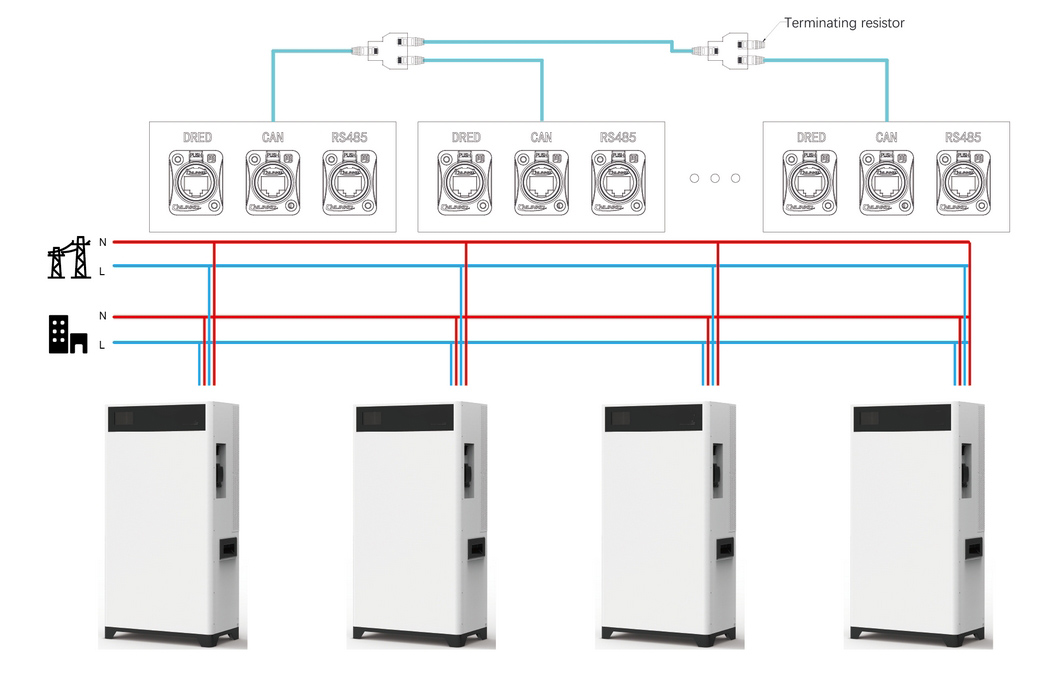

Communication connection Method
Product Parameters
| Model |
PS10 |
PS20 |
| PV parameters | ||
| Max.input Power | 6000W | 6000W |
| Max.DC Voltage | 580Vd.c | 580Vd.c |
| Max.short circuit current | 14/14Ad.c | 14/14Ad.c |
| MPPT voltage range | 125~550Vd.c | 125~550Vd.c |
| Max.input current | 11/11Ad.c | 11/11Ad.c |
| MPPT input channels | 2 | 2 |
| Battery parameters | ||
| Battery Type | LiFePO4 | LiFePO4 |
| Voltage | 51.2V(DC) | 51.2V(DC) |
| Capacity | 206Ah | 412Ah |
| Energy | 10.547kWh | 21.094kWh |
| Load parameters | ||
| Apparent power | 5000VA | 5000VA |
| Voltage | 220/230Va.c | 220/230Va.c |
| Max.current | 22.8Aa.c | 22.8Aa.c |
| Frequency | 50/60Hz | 50/60Hz |
| Grid parameters | ||
| Apparent power | 5000VA | 5000VA |
| Voltage | 220/230Va.c | 220/230Va.c |
| Max.input/output current | 22.8Aa.c | 22.8Aa.c |
| Frequency | 50/60Hz | 50/60Hz |
| Power factor | 0.8cap~0.8ind | 0.8cap~0.8ind |
| Overvoltage category | Ⅱ(DC);Ⅲ(AC) | Ⅱ(DC);Ⅲ(AC) |
| Charging temperature range | 0~45℃ | 0~45℃ |
| Discharging temperature range | -10~45℃ | -10~45℃ |
| Security Level | CLASS I | CLASS I |
| IP Level | IP 65 | IP 65 |
| Slze (D*W*H) | 250*540*1020 mm | 250*540*1415 mm |
| Weight | 109kg | 188kg |
| Certification |
VDE 4105:2018 &VDE 0124-100:2020-06 TR25 &TOR Generator Typ AV1.1 CEI 0-21:2022&CE&UN3480 |
|
Certification

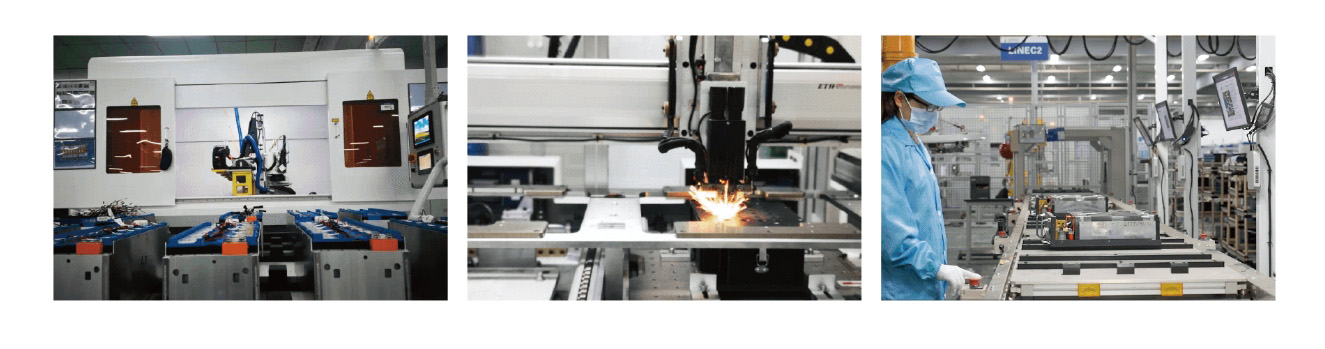

Production Line

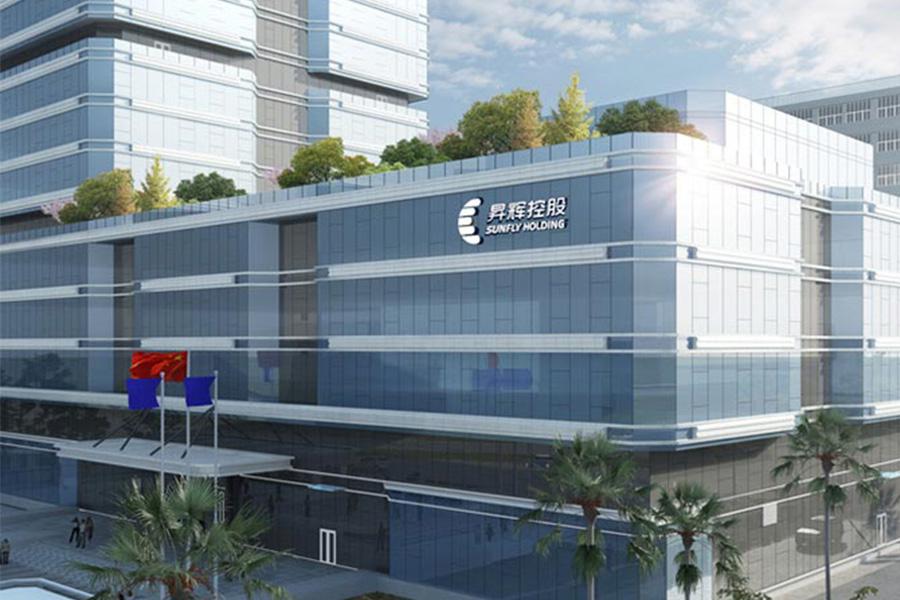

About Us
|
Founded in 2010 |
Owns 488 patents and software copyrights |
|
Over 6,000 large-scale engineering cases |
Sold to 18 countries and regions |
* Enecell started as a new business unit by Sunfly Holding Group (Stock Code: 300423) which was established in 2010.Evolving from the support of Sunfly, ENECELL has become an independent leader in EV charging and residential and commercial energy storage. Committed to sustainability, ENECELL aims to drive green living, energy independence, and carbon reduction through innovative, eco-friendly solutions.
*As a brand of Shenghui Technology, ENECELL specializes in global energy storage, offering a wide range of products including household and portable energy storage systems, mobile charging stations, and micro-grid solutions. Core products include energy storage inverters, integrated systems, and PLC communication control for energy management.
Partnership
Our company has many partners, including ABB,Schneider,Haier,China Mobile and other well-known enterprises. Business and supply chain cooperation covers infrastructure,transportation,new energy,electrical,industrial and mining,real estate,intelligent manufacturing and other fields.
