⚡ Dual MPPT design
⚡ MPPT current 20A
⚡ IP66 high protection
⚡ 1.6 times DC over-matching
⚡Maximum efficiency 98.4%
⚡Applicable to lithium/lead-acid batteries
⚡ Intelligent charge and discharge control
⚡On-grid and off-grid switching time <10ms
Item NO. :
GZ30-60KTRWarranty :
5 Year WarrantyMOQ :
≥5Power :
30kW/40kW/50kW/60kWPayment :
T/TLead Time :
30 DaysApplicable Scenarios :
CommercialCertificate :
UN/CE/CEIVoltage :

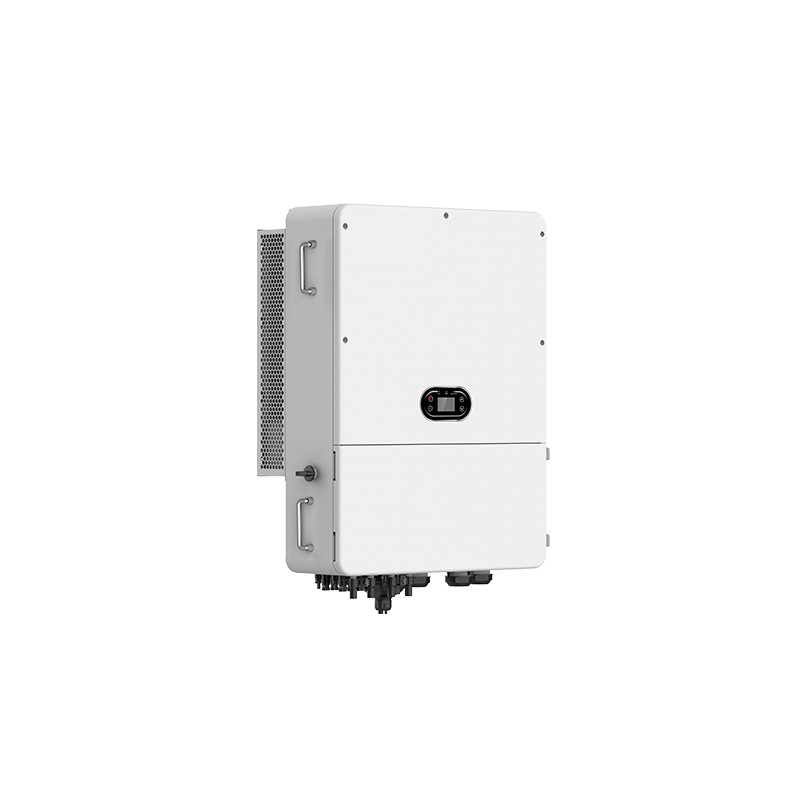

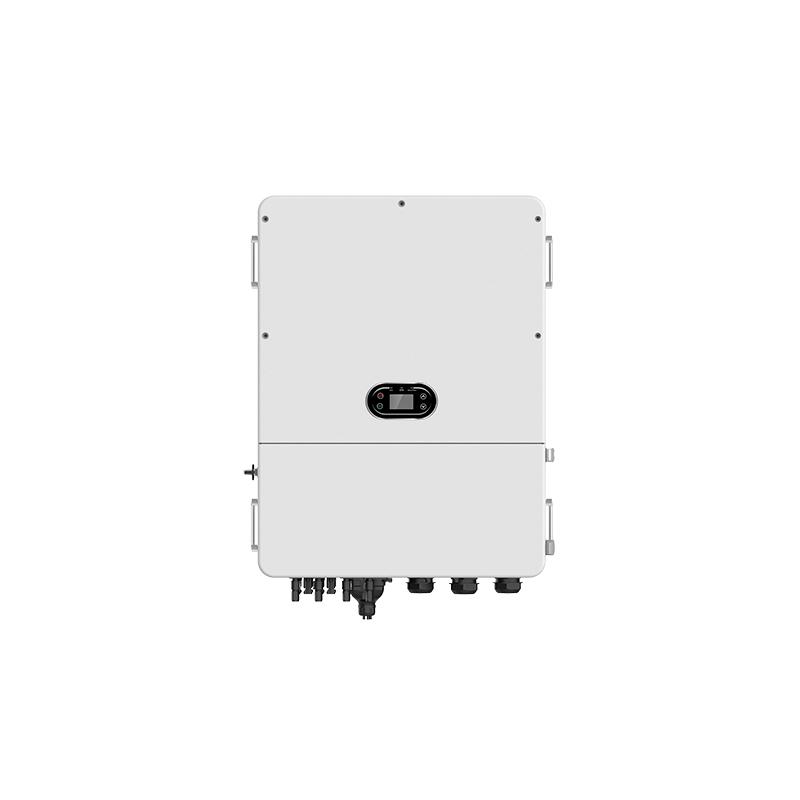

3 / N PE, 230V / 400Vac60kW AC Hybrid Solar Power Inverter with Dual MPPT Design
The AC Hybrid Solar Power Inverter features a dual MPPT design with a maximum MPPT current of 20A, ensuring efficient power management and optimization for solar systems. With IP66 high protection, it is perfect for outdoor installations and offers 1.6 times DC over-matching for better energy harvesting. The inverter boasts a maximum efficiency of 98.4%, delivering reliable power output. It is compatible with both lithium and lead-acid batteries and offers intelligent charge and discharge control for optimal energy use. The inverter also supports both on-grid and off-grid operations with a switching time of less than 10ms, making it a versatile solution for various solar applications.
Product Advantages
Efficient & Higher Revenue
˙ 4 MPP Trackers, 150% DC input oversizing
˙ Max. PV input current 20A, compatible with high power PV modules
˙ Max. charge/discharge current 200A, 150% EPS peak output power
Intelligent & Simple O&M
˙ IP66 protection
˙ DC&AC Type ll SPD: prevent lightning damage
˙ Smart I-V curve diagnosis function: locate PV string faults accurately and
automatically detect faults
Flexible & Abundant Configuration
˙ Plug & play, EPS switching under 10ms
˙ AFCI function (optional): when an arc-fault is detected the inverter immediately stops operation
˙ Multiple working modes
| XD30KTR | XD40KTR | XD50KTR | XD60KTR | ||
| Input（PV） | |||||
| Max. Input Power | 48000Wp | 64000Wp | 80000Wp | 96000Wp | |
| Max. Input Voltage | 1100V | ||||
| Start-up Voltage | 200V | ||||
| Rated Voltage | 620V | ||||
| MPPT Voltage Range | 180V - 1000V | ||||
| Number of MPP Trackers | 4 | ||||
| Number of String per MPPT | 8 | ||||
| Max. Current per MPPT | 4*40A | ||||
| Max. Short Circuit Current per MPPT | 4*60A | ||||
| Output（On-Grid） | |||||
| Rated Output Power | 30kW | 40kW | 50kW | 60kW | |
| Max. Output Power | 33kVA | 44kVA | 55kVA | 66kVA | |
| Max. Output Current | 50A | 66.7A | 83.4A | 100A | |
| Max. Input Power from Grid | 45kW | 60kW | 75kW | 90kW | |
| Max. Input Current from Grid | 68.4A | 91A | 113.7A | 136.4A | |
| Rated Grid Voltage | 3 / N PE, 230V / 400Vac | ||||
| Rated Grid Frequency | 50Hz / 60Hz | ||||
| THDi(@Rated Power) | <3% | ||||
| Power Factor | 0.8 leading~0.8 lagging | ||||
| Battery | |||||
| Battery Type | Lithium | ||||
| Battery Voltage Range | 160V - 850V | ||||
| Max. Charge / Discharge Power | 44kW | 55kW | 66kW | ||
| Max. Charge / Discharge Current | 2*100A | ||||
| Communication | CAN / RS485 | ||||
| Output（EPS） | |||||
| Rated Output Power | 30kW | 40kW | 50kW | 60kW | |
| Max. Output Current | 45.6A | 60.7A | 75.8VA | 91A | |
| Peak Output Power, Time | 1.5 times / 10s | ||||
| Switch Time | <10ms | ||||
| Rated Voltage | 3 / N PE, 230V / 400Vacz | ||||
| Rated Frequency | 50Hz / 60Hz | ||||
| Max.AC passthrough current | 150A | ||||
| Output（Generator） | |||||
| Max. Output Power | 30kW | 40kW | 50kW | 60kW | |
| Max. Output Current | 45.6A | 60.7A | 75.8VA | 91A | |
| Rated Voltage | 3 / N PE, 230V / 400Vac | ||||
| Rated Frequency | 50Hz / 60Hz | ||||
| Efficiency | |||||
| Max. Efficiency | 98.40% | ||||
| European Efficiency | 97.50% | ||||
| Battery Charge / Discharge Efficiency | 97.50% | ||||
| Protection | |||||
| Protection | DC Switch, DC Reverse Polarity Protection, Anti-islanding Protection, AC Short Circuit Protection, Residual Current Monitoring, Ground Fault Monitoring, Over Current /Voltage Protection, Battery Active Function, I-V Curve Scan | ||||
| Surge Protection | Type II | ||||
| AFCI Protection | Optional | ||||
| General Data | |||||
| Display | LCD / LED | ||||
| Weight | 92kg | ||||
| Dimension（W x H x D） | 620 x 900 x 300 mm | ||||
| Operating Temperature Range | -30℃～+60℃ | ||||
| Cooling Method | Smart Cooling | ||||
| Protection Degree | IP66 | ||||
| Max. Operating Altitude | 4000m | ||||
| Relative Humidity | 0~95% | ||||
| Self-consumption | ＜15W | ||||
| Topology | Transformerless | ||||

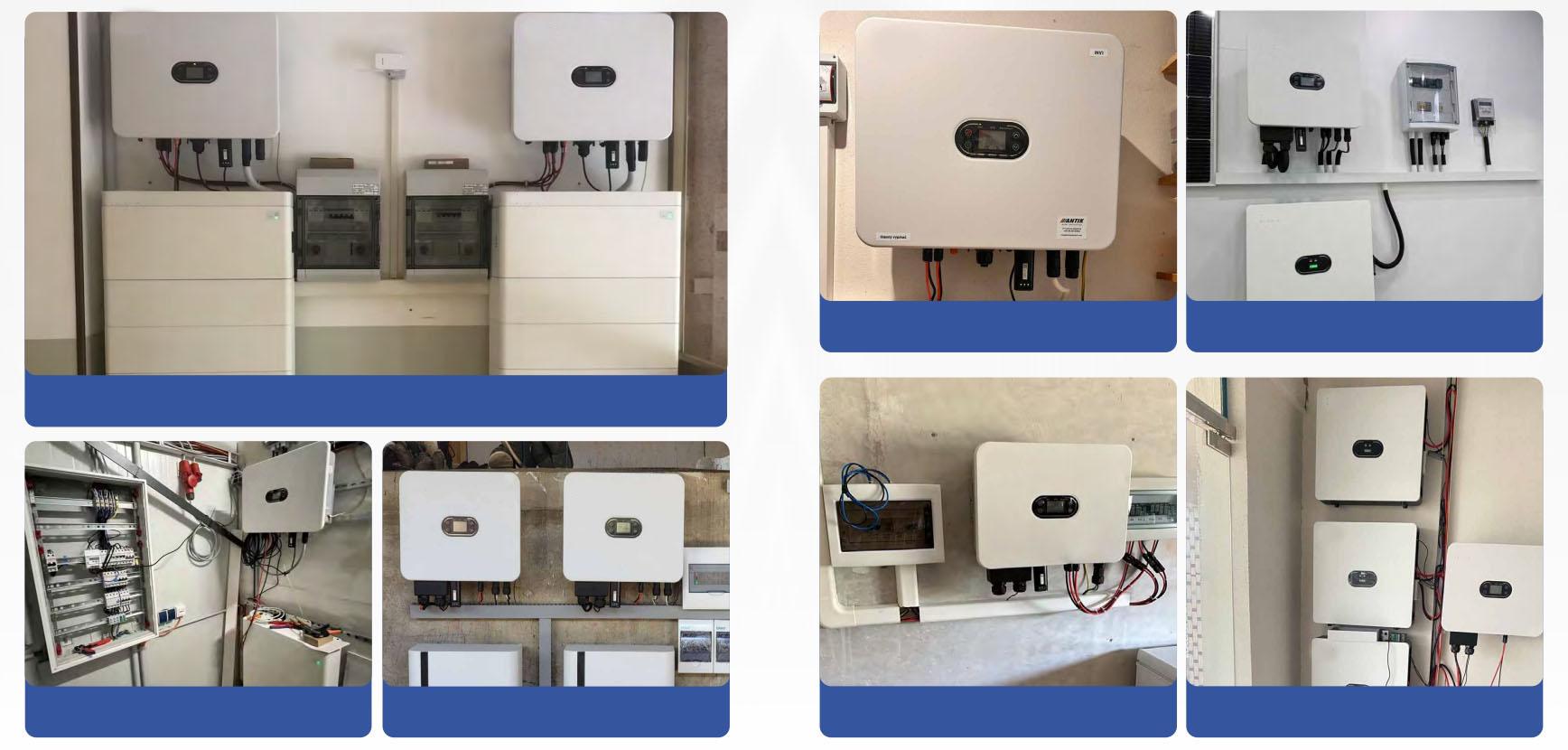

Application Case
