⚡ Boosts power with Light Redirecting Film
⚡ Non-Destructive Cutting for cell integrity
⚡ Precise laser welding for durability
⚡ High bifacial efficiency
⚡ Reliable energy output
⚡ Enhanced module safety
Item NO. :
RM-610-650W-182M-156TBWarranty :
25 YearsMOQ :
≥200Power :
7kW/8kW/10kWPayment :
T/TLead Time :
30 DaysApplicable Scenarios :
Household and commercial photovoltaic projectsCertificate :
CE CEI CQCVoltage :

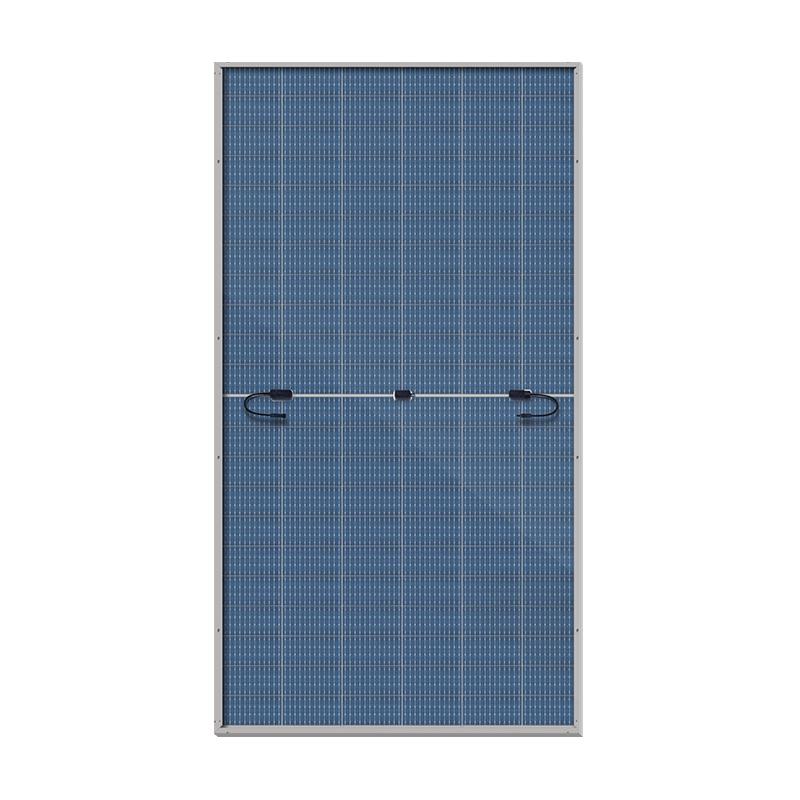

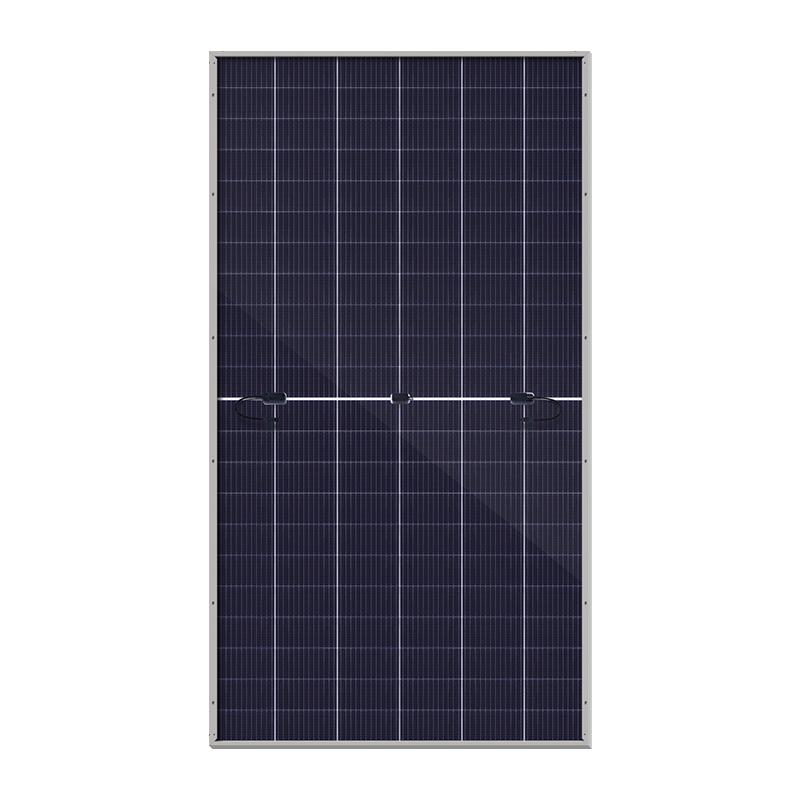

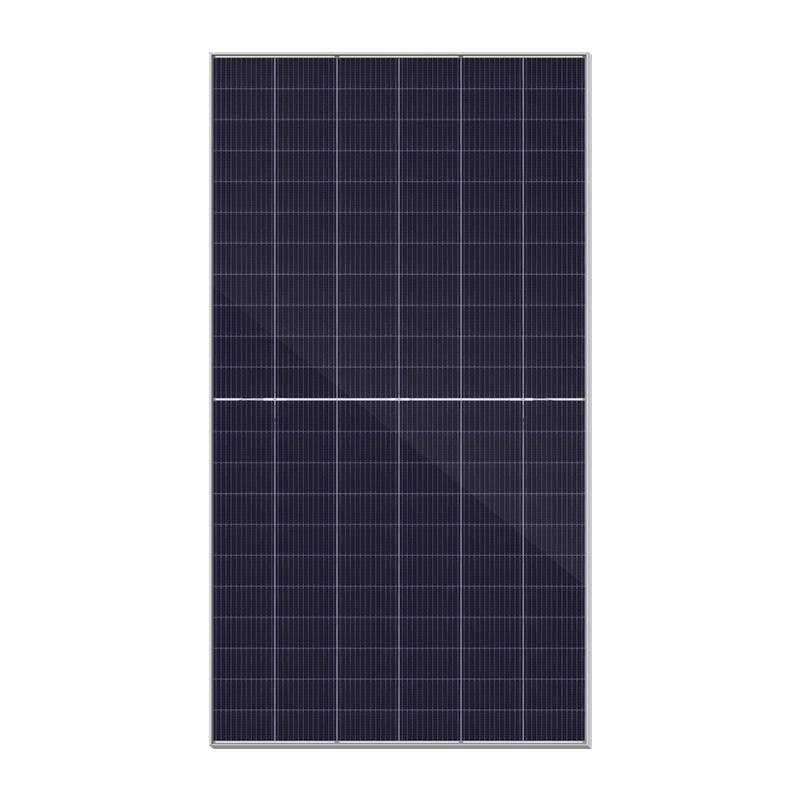

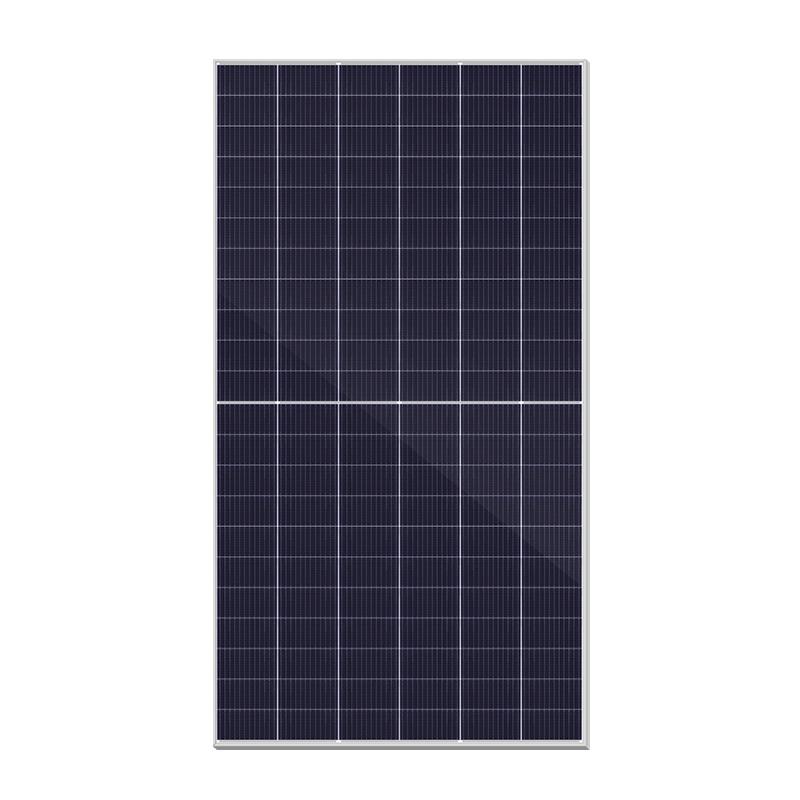

230V630W N-Topcon Bifacial Monocrystalline Solar Panel
Enecell is Bifacial Solar Panel Manufacturer, N-TOPCon Solar Panel Supplier, 625W N-Topcon Bifacial Monocrystalline Solar Panel offers a higher power output, boosting efficiency by up to 25% with positive tolerance for reliable performance. Multi Busbar technology enhances power and efficiency, while its advanced PID resistance and low-light capabilities ensure consistent energy production.
Product Advantages
Light Redirecting Film:
TOPCON modules use gap Light Redirecting Film technology to ensure the bifaciality and reliability of the module, meanwhile effectively increasing the power performance.
No-Destructive Cutting:
NDC (non-destructive) cutting technology is used, providing a smooth cutting surface that avoids the loss of the mechanical structure of the cells and ensures sufficient current.
Junction Box Laser Welding Technology:
High energy density and precise positioning control capabilities of the laser are used to achieve high-quality welding. It accurately controls the junction box welding position and welding time to ensure welding quality and reliability, improving module safety.
Specification
ELECTRICAL CHARACTERISTICS (STC*)
| Rated Power in Watts-Pmax(Wp) | 610 | 615 | 620 | 625 | 630 | 635 | 640 | 645 | 650 | |||
| Open Circuit Voltage-Voc(V) | 56.81 | 56.98 | 57.15 | 57.32 | 57.49 | 57.67 | 57.84 | 58.01 | 58.19 | |||
| Short Circuit Current-lsc(A) | 13.58 | 13.65 | 13.72 | 13.78 | 13.85 | 13.92 | 13.99 | 14.06 | 14.13 | |||
| Max. Power Voltage-Vmpp(V) | 47.50 | 47.64 | 47.79 | 47.93 | 48.07 | 48.22 | 48.36 | 48.51 | 48.65 | |||
| Max. Power Current-Impp(A) | 12.85 | 12.91 | 12.98 | 13.04 | 13.11 | 13.17 | 13.24 | 13.31 | 13.37 | |||
| Module Efficiency(%) | 21.82 | 22.00 | 22.18 | 22.36 | 22.54 | 22.72 | 22.89 | 23.07 | 23.25 | |||
| Maximum system voltage | 1500V DC | |||||||||||
| Fuse Rating(A) | 30 | |||||||||||
| emperature coefficient Pmax | -0.30%/℃ | |||||||||||
| Temperature coefficient Isc | 0.046%/℃ | |||||||||||
| Temperature coefficient Voc | -0.25%/℃ | |||||||||||
| Refer. Bifacial Factor | 80±5% | |||||||||||
*STC: Irradiance 1000W/m², module temperature 25℃, AM=1.5
WORKING CHARACTERISTICS (NOCT*)
| Rated Power in Watts-Pmax(Wp) | 455 | 459 | 462 | 466 | 470 | 474 | 478 | |||
| Open Circuit Voltage-Voc(V) | 52.41 | 52.54 | 52.66 | 52.79 | 52.93 | 53.15 | 53.28 | |||
| Short Circuit Current-lsc(A) | 11.26 | 11.33 | 11.39 | 11.46 | 11.52 | 11.58 | 11.64 | |||
| Max. Power Voltage-Vmpp(V) | 42.23 | 42.35 | 42.46 | 42.57 | 42.68 | 42.79 | 42.90 | |||
| Max. Power Current-Impp(A) | 10.77 | 10.83 | 10.89 | 10.95 | 11.01 | 11.07 | 11.13 | |||
| Power tolerance | 0~+3% | |||||||||
| NOCT | 45℃±2℃ | |||||||||
| Operating Temperature | -40℃ ~85℃ | |||||||||
*NOCT: lrradiance 800W/m², ambient temperature 20℃, wind speed 1m/s
ELECTRICAL CHARACTERISTICS WITH DIFFERENT REAR SIDE POWER GAIN
| Pmax/W | Voc/V | Isc/A | Vmpp/V | Impp/A | |
| 5% | 683 | 58.19 | 14.84 | 48.65 | 14.04 |
| 10% | 715 | 58.19 | 15.54 | 48.65 | 14.71 |
The additional gain from the rear side compared to the power of the front side at the standard test condition.
It depends on mounting (structure, height, tilt angle etc.) and albedo of the ground.
MECHANICAL CHARACTERISTICS
| Number of cells | 156pcs | Type of frame | Anodized Aluminum Alloy |
| Type of cell | N-TOPCon Mono | Size of module(mm) | 2465×1134×35/30 |
| Thickness of glass(mm) | 2.0 | Weight(kg) | 34 |
| Junction box | IP68,1500V DC,3 Diodes | Cables/connectors | 4.0mm²,MC4 compatible |
| Length of Cable | +300mm/-200mm | Length can be customized (connector included) | |
PACKAGING CONFIGURATION
| Height of Modules (mm) | 35 | 30 | |||||||||
| Number of Modules Per Pallet | 31 | 36 | |||||||||
| Packaging Box Dimensions (l×w×h) (mm) | 2485×1120×1260 | 1260×1120×2595 | |||||||||
| Box Gross Weight (kg) | 1080 | 1250 | |||||||||
| Number of Modules Per 40ft (HQ) Container | 496 | 576 | |||||||||
| Number of Pallets Per 40ft (HQ) Container | 16 | 16 | |||||||||
|

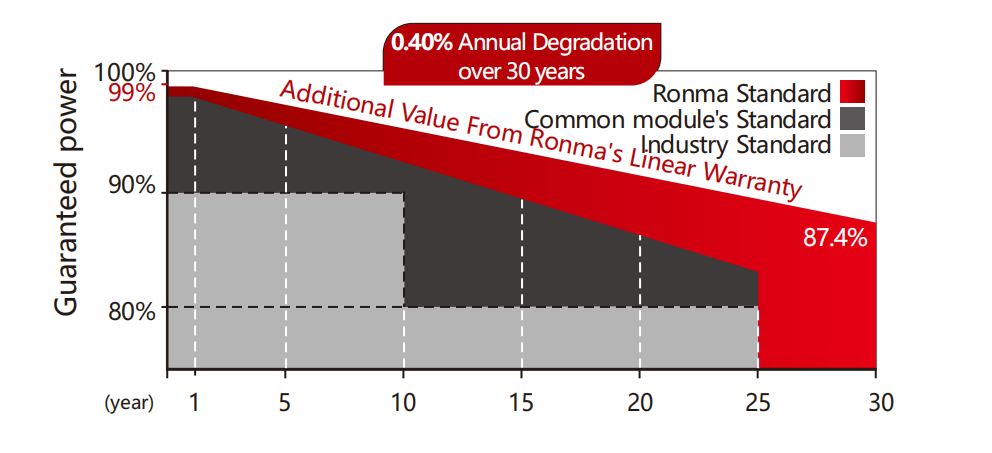

Linear Performance Warranty 15-year product warranty / 30-year linear power warranty |
 |
 |
Low-light Performance Excellent performance in low light. |
 |
Durability Against Extreme Environmental Conditions High salt mist and ammonia resistance certified by TUV NORD. |
 |
EL Full Inspection Dual-stage 100% EL Inspection. |
 |
Higher Power Output Module power increases by 5-25% generally, bringing significantly lower LCOE and higher IRR. 0-5w positive tolerance output warranty. |
 |
Multi Busbar Technology By improving optical utilization rate, power increases by 2~3% and efficiency increases by 0.4~0.6%. |
 |
PID Resistance Excellent Anti-PID performance guarantee via optimized mass-production process and material control. |

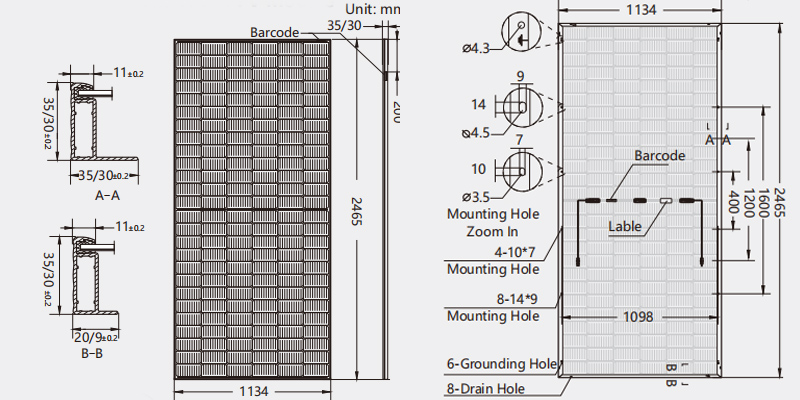

Dimensions of PV Module
RM-650W-182M/156TB

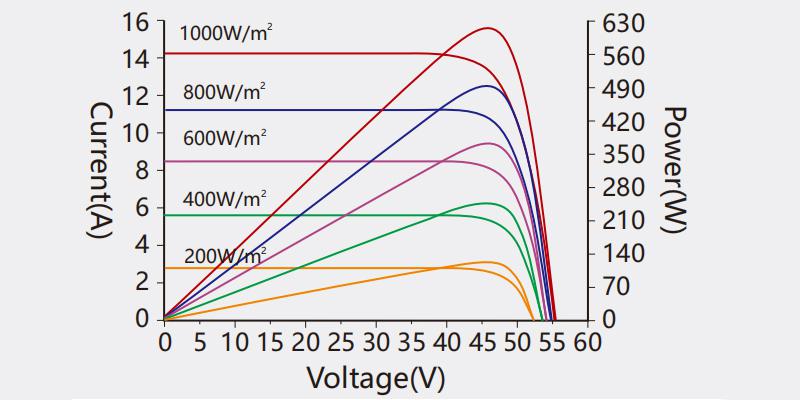

I-V characteristics at different irradiations
Cells temp.=25°C

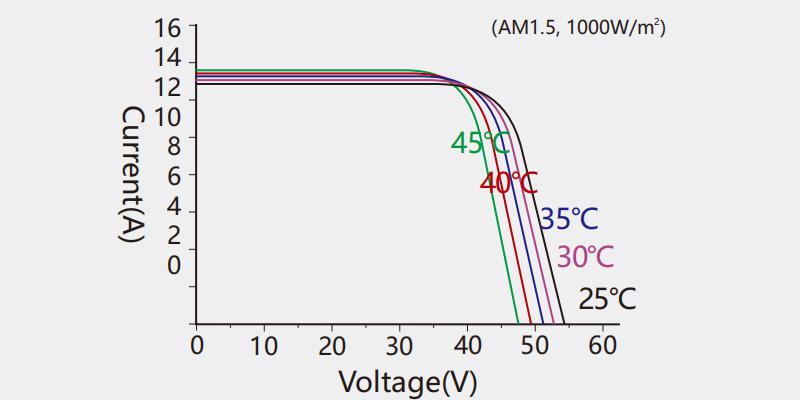

I-V characteristics at different temperatures
Certification
