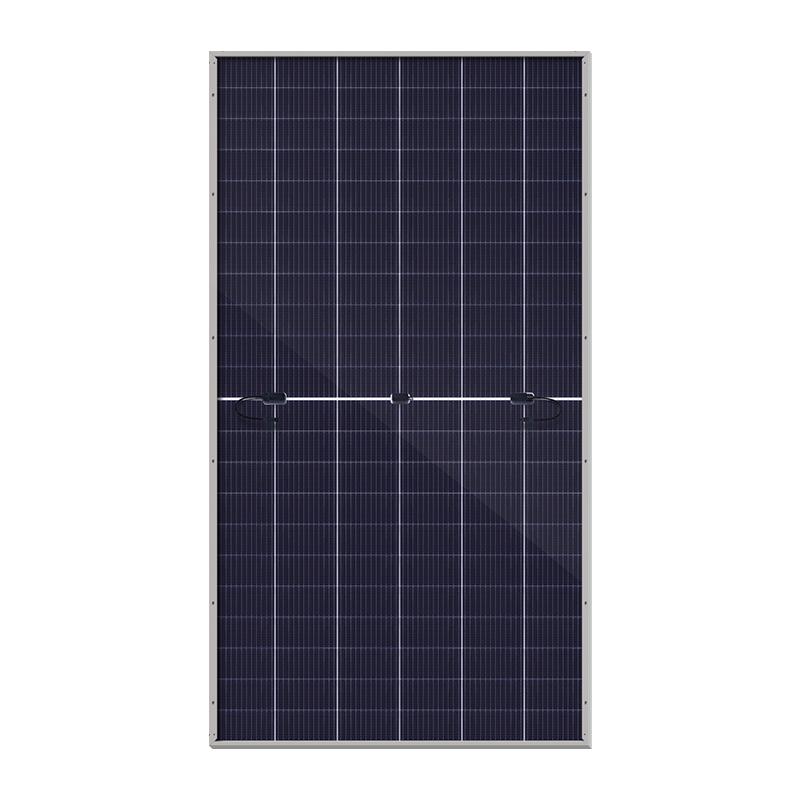

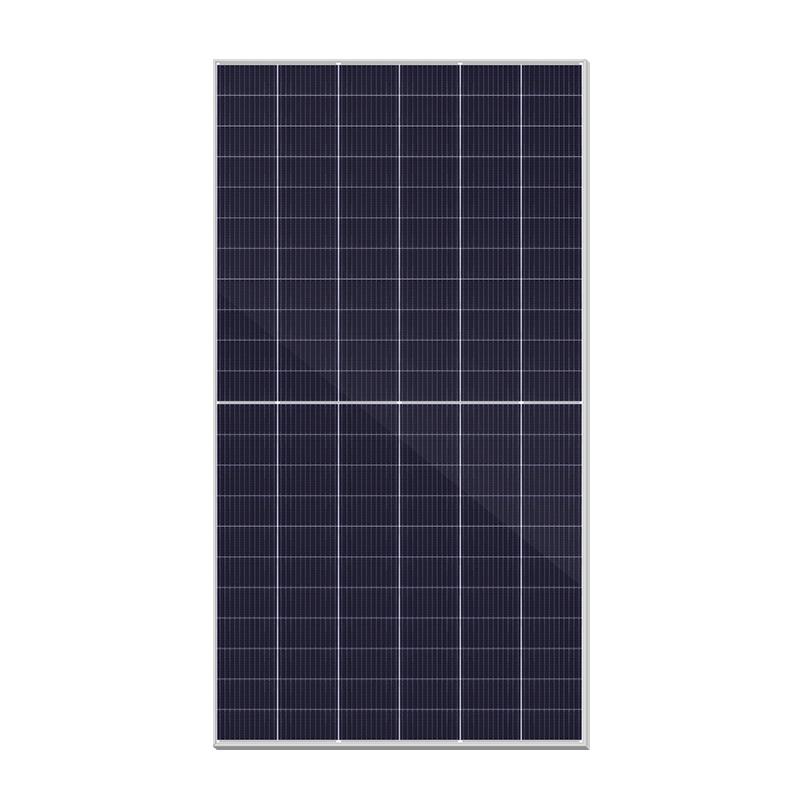

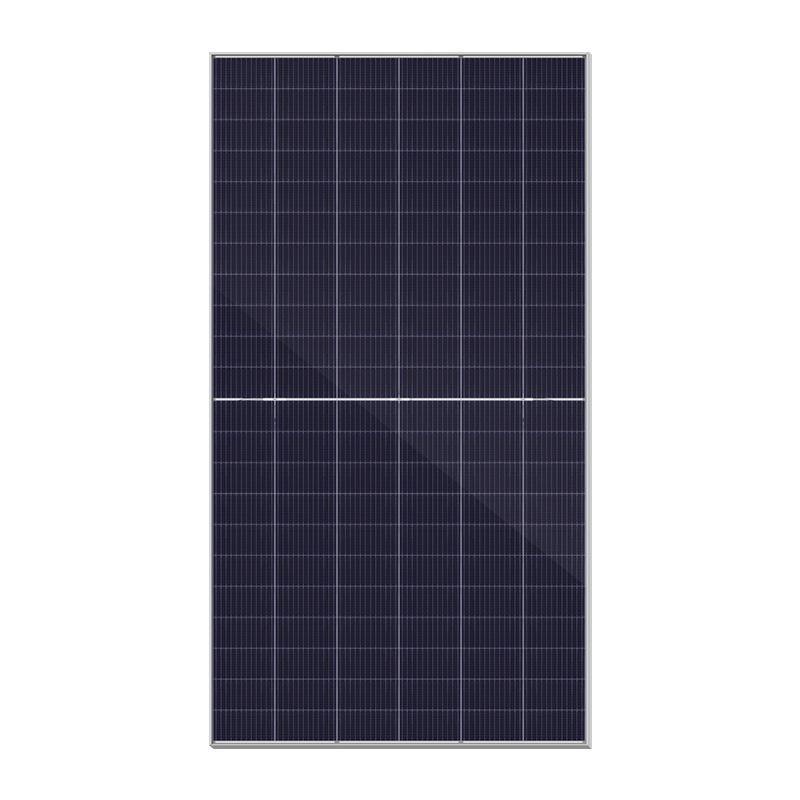

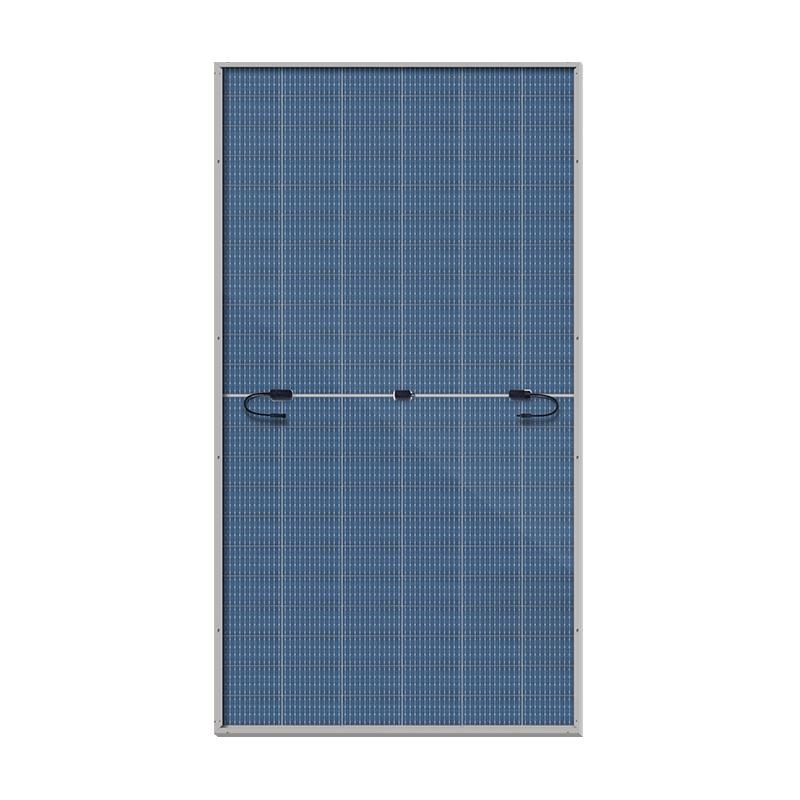

700W High Efficiency N-Topcon Bifacial Monocrystalline PV Modules Solar Panel

700W High Efficiency N-Topcon Bifacial Monocrystalline PV Modules Solar Panel

We offer high efficiency N-Topcon Bifacial Monocrystalline PV Modules, 700W Solar Panels, is designed to deliver superior energy performance. It boosts power with Light Redirecting Film, enhancing light absorption for increased energy output. The Non-Destructive Cutting process ensures excellent cell integrity, while precise laser welding guarantees long-lasting durability. With high bifacial efficiency, this panel captures sunlight from both sides, maximizing energy generation even in low-light conditions. Offering reliable energy output and enhanced module safety, it is the perfect solution for both residential and commercial solar installations.



  • Item NO. :

    GZ-705W-210M/132TB
  • Mono TOPCon :

    132 CELL
  • Power output :

    685-705Wp
  • Max System Voltage :

    1500V DC
  • Size (mm) :

    2384×1303×33
  • Warranty :

    25 Years
  • MOQ :

    ≥200
  • Power :

    7kW/8kW/10kW
  • Payment :

    T/T
  • Lead Time :

    30 Days
  • Certificate :

    CE,CEI,CQC IEC61215/IEC61730/IEC61701/IEC62716/WEEE De93315506
  • Voltage :

    230V

700W High Efficiency N-Topcon Bifacial Monocrystalline PV Modules Solar Panel



Glory Zenith, specializing in high-performance N-TOPCon solar panels. The 700W N-TOPCon bifacial monocrystalline solar panel offers exceptional power output, increasing efficiency by up to 25%, with a positive tolerance for reliable performance.

High Efficiency N-Topcon Bifacial Monocrystalline PV Modules Solar Panel



Low-light Performance

Excellent performance in low light.

Durability Against Extreme Environmental Conditions

High salt mist and ammonia resistance certified by TUV NORD

EL Full Inspection

Dual-stage 100% EL Inspection

Higher Power Output

Module power increases by 5-25% generally, bringing significantly lower LCOE and higher IRR. 0-5w positive tolerance output warranty

Multi Busbar Technology

By improving optical utilization rate, power increases by 2~3% and efficiency increases by 0.4~0.6%.

PID Resistance

Excellent Anti-PID performance guarantee via optimized mass-production process and material control.



Bifacial Monocrystalline Module

Light Redirecting Film: TOPCON modules apply gap Light Redirecting Film technology to enhance bifaciality and reliability, effectively boosting power performance.

Non-Destructive Cutting: NDC technology ensures smooth cutting surfaces, preventing structural damage to cells and maintaining optimal current flow.

Junction Box Laser Welding: High-energy laser welding with precise positioning ensures quality and reliability by accurately controlling the junction box welding process, enhancing module safety.



Specification

ELECTRICAL CHARACTERISTICS (STC*)

Rated Power in Watts-Pmax(Wp) 685 690 695 700 705
Open Circuit Voltage-Voc(V) 47.70  47.90 48.30 48.60  48.80
Short Circuit Current-lsc(A) 18.21 18.25 18.28 18.32 18.36
Max. Power Voltage-Vmpp(V) 39.80 40.10  40.30 40.50 40.70
Max. Power Current-Impp(A) 17.19 17.23 17.25 17.29 17.33
Module Efficiency(%) 22.05 22.21 22.37 22.53 22.70
Maximum system voltage 1500V DC
Fuse Rating(A) 30
Temperature coefficient Pmax -0.30%/℃
Temperature coefficient Isc 0.046%/℃
Temperature coefficient Voc -0.25%/℃
Refer. Bifacial Factor 80±5%

*STC: Irradiance 1000W/m², module temperature 25℃, AM=1.5



WORKING CHARACTERISTICS (NOCT*)

Rated Power in Watts-Pmax(Wp) 521    526 530 534 538
Open Circuit Voltage-Voc(V) 37.30    37.70 37.80 38.00 38.20
Short Circuit Current-lsc(A) 13.94    13.96 14.02 14.05 14.08
Max. Power Voltage-Vmpp(V) 45.20    45.40 45.80 46.00 46.20
Max. Power Current-Impp(A) 14.67    14.71 14.73 14.76 14.80
Power tolerance 0~+3%
NOCT 45℃±2℃
Operating Temperature -40℃ ~85℃

*NOCT: lrradiance 800W/m², ambient temperature 20℃, wind speed 1m/s



ELECTRICAL CHARACTERISTICS WITH DIFFERENT REAR SIDE POWER GAIN

5% Pmax(Wp) 719.30 724.50 729.80 735.00 740.30
Efficiency(%) 23.20 23.30 23.50 23.70 23.80
15% Pmax(Wp) 787.80 793.50 799.30 805.00 810.80
Efficiency(%) 25.40 25.50 25.70 25.90 26.10
25% Pmax(Wp) 856.30 862.50 868.80 875.00 881.30
Efficiency(%) 27.60 27.80 28.00 28.20 28.40

*The additional gain from the rear side compared to the power of the front side at the standard test condition.
It depends on mounting (structure, height, tilt angle etc.) and albedo of the ground.



MECHANICAL CHARACTERISTICS

Number of cells 132pcs Type of frame Anodized Aluminum Alloy
Type of cell N-TOPCon Mono Size of module(mm) 2384×1303×33
Thickness of glass(mm) 2.0  Weight(kg) 38
Junction box IP68,1500V DC,3 Diodes Cables/connectors 4.0mm²,MC4 compatible
Length of Cable +350mm/-250mm Length can be customized (connector included)



PACKAGING CONFIGURATION

Height of Modules  (mm) 33
Number of Modules Per Pallet 33
Packaging Box Dimensions (l×w×h) (mm) 1326×1140×2515
Box Gross Weight (kg) 1280
Number of Modules Per 40ft (HQ) Container 594
Number of Pallets Per 40ft (HQ) Container 18

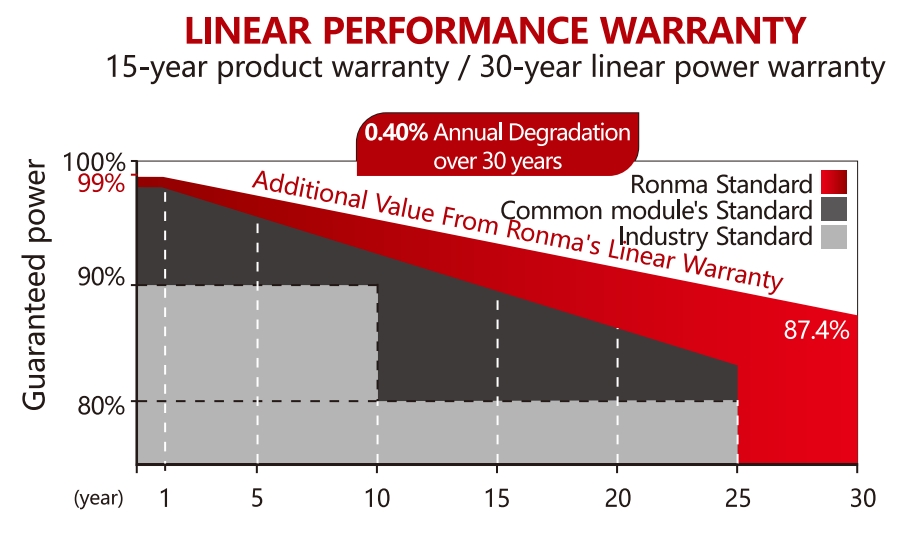

Linear Performance Warranty

15-year product warranty / 30-year linear power warranty

Linear Performance Warranty

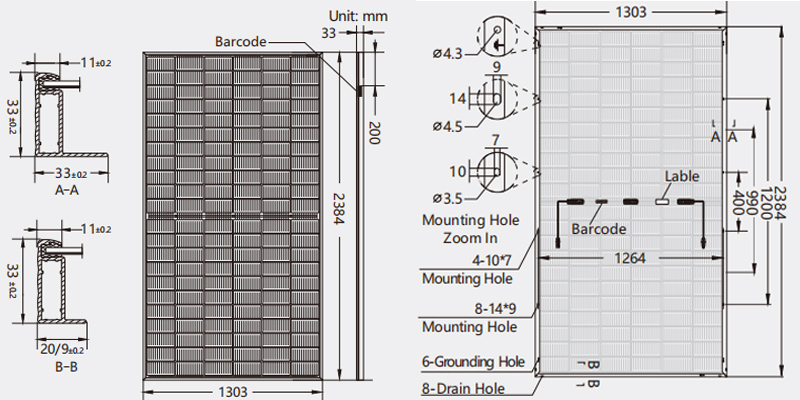

Dimensions of PV Module

Dimensions of PV Module



GZ-685W-210M-132TB

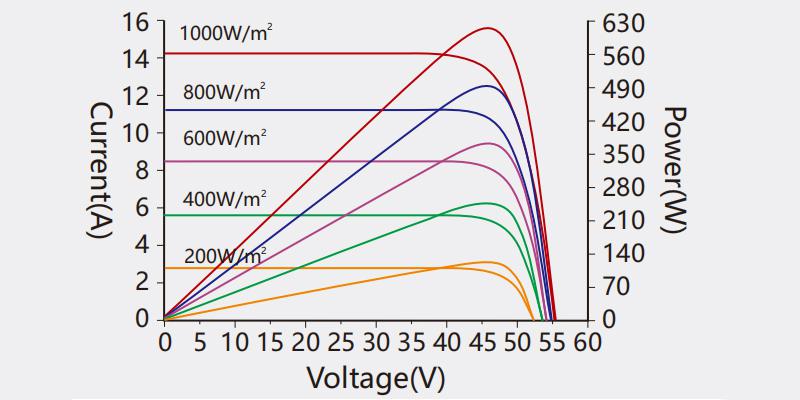

I-V characteristics at different irradiation

Cells temp.=25°C

Cells temp.=25°C

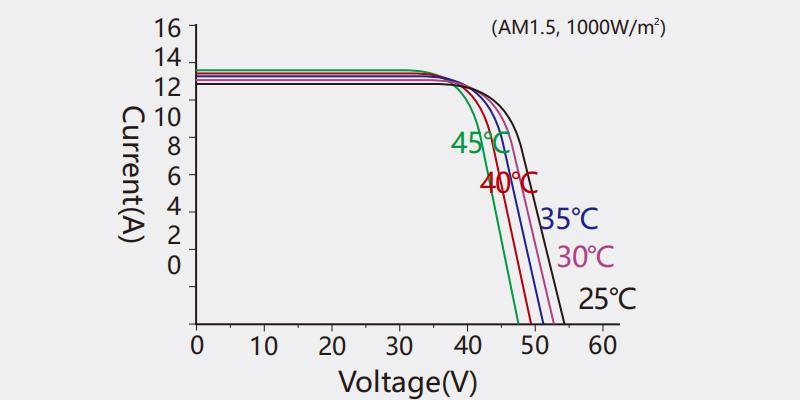

I-V characteristics at different temperatures

I-V characteristics at different temperatures



Certification



solar panel Certification
