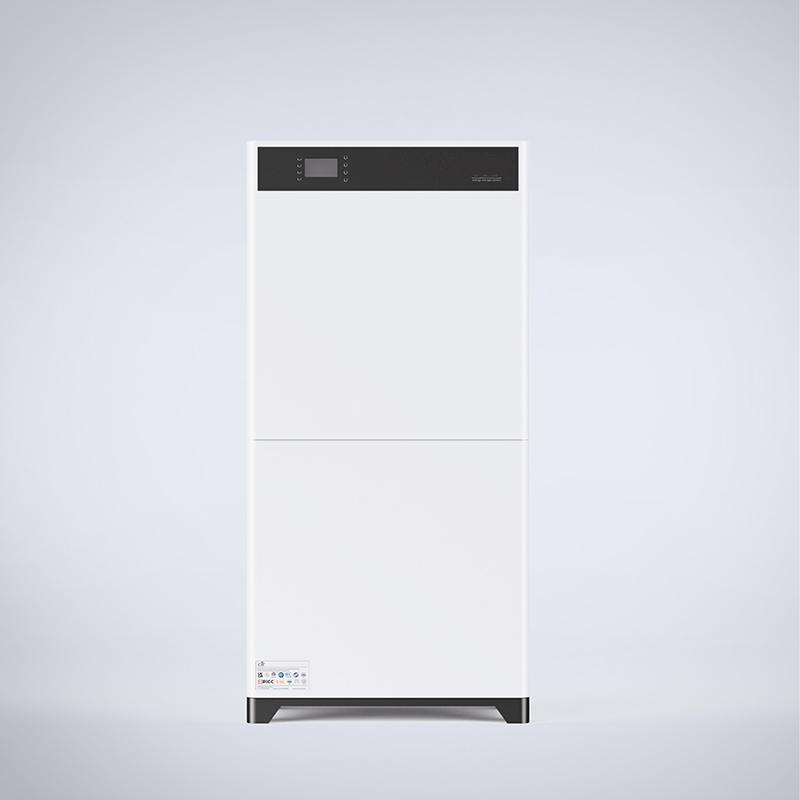

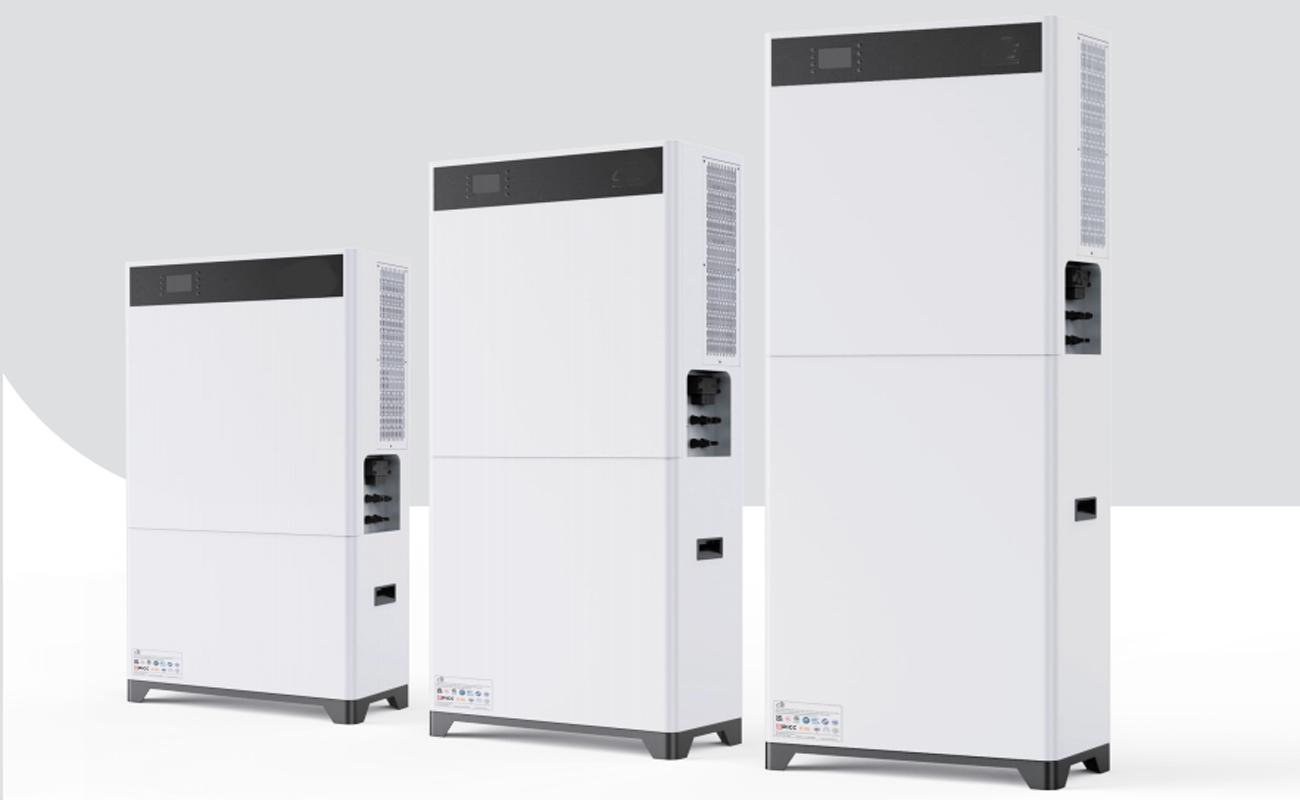

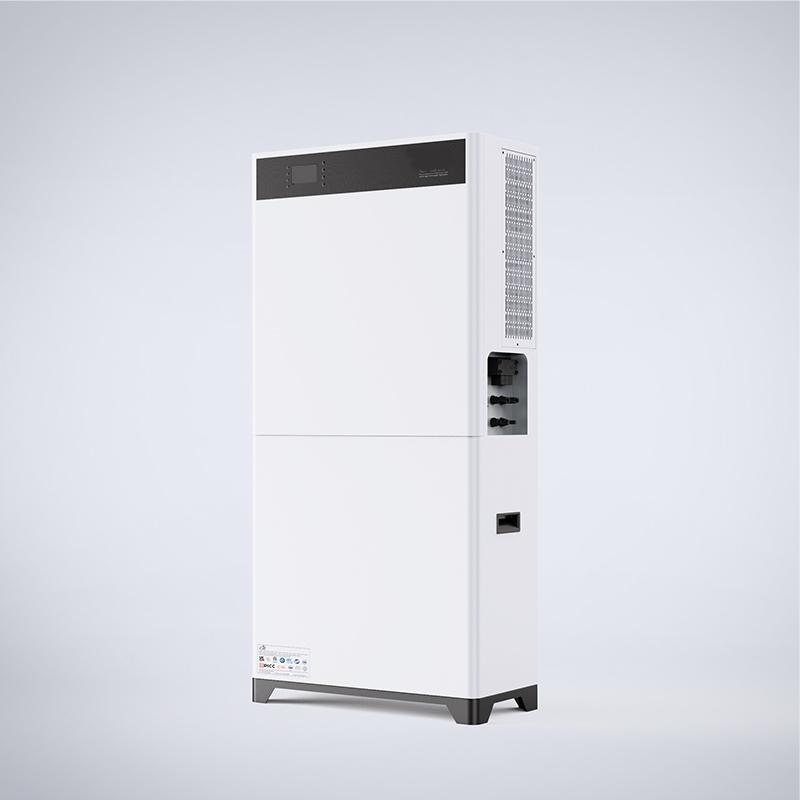

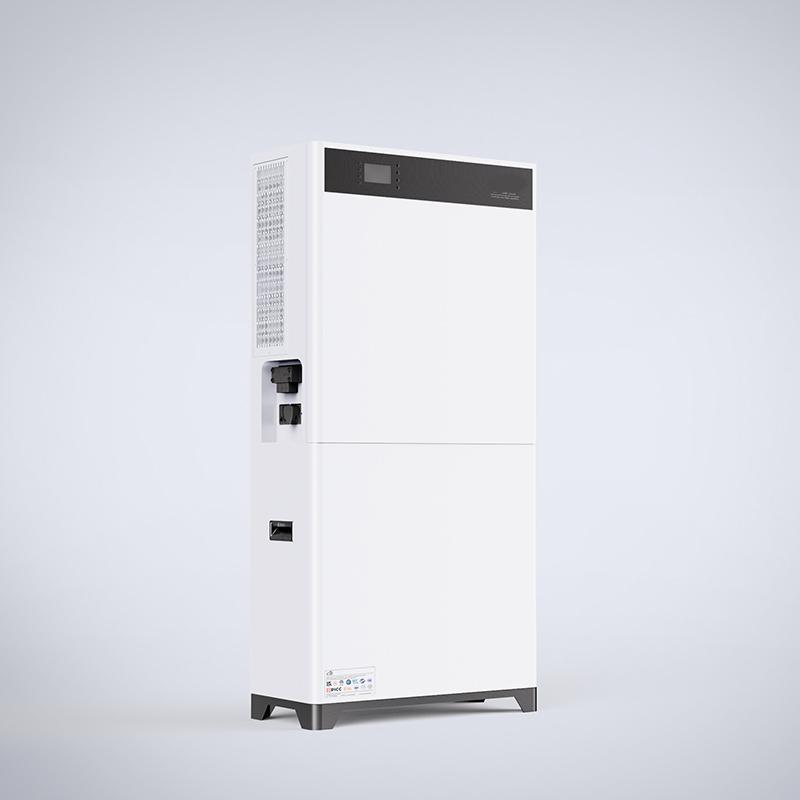

CFE-PSe All in One Residential Battery Energy Storage System

CFE-PSe All in One Residential Battery Energy Storage System

⚡ Integrated design of battery and inverter

⚡ Easier and more convenient installation

⚡ Simple and beautiful appearance, it looks more like a home appliance when placed at home

⚡ Mobile monitoring software to check the device status at any time

  • Item NO. :

    CFE-PSe
  • Warranty :

    5 years
  • MOQ :

    ≥5
  • Power :

    3kW/3.68kW/4kW/4.6kW/5kW/6kW
  • Payment :

    T/T
  • Lead Time :

    30 Days
  • Applicable Scenarios :

    Residential
  • Certificate :

    UN/UL/CE/CB
  • Voltage :

    230V

CFE-PSe All in One Residential Battery Energy Storage System



Enecell is China 10kW All in One Energy Storage System Supplier, The CFE-PSe All in One ESS Residential Storage System delivers flexible, efficient energy storage with easy installation and expandable capacity. Featuring durable Li-ion batteries for 6000 cycles, adjustable operating modes, and built-in MPPT control, it ensures high energy efficiency and low no-load loss. Ideal for reliable, cost-effective residential power management.


Product Features




⚡Highly Efficient and Flexible

• Battery inverter stacking design, easy installation

• Multiple models of batteries and inverters, free matching of configurations, capacity can be expanded according to demand



⚡Efficient Management

• Adoption of ultra-high energy density and cost-effective battery materials improves the energy utilization efficiency of the system

• Low no-load loss of the whole machine, high inverter efficiency



⚡Excellence In Quality

• Industrial frequency sine wave output, with utility complementary function

• Built-in PV MPPT controller, multiple MPPT configurations available

• Industrial frequency sine wave output, with utility complementary function

• Built-in PV MPPT controller, multiple MPPT configurations available



⚡Technological Lead

• Priority adjustable operating mode, selectable grid charging current, user-defined voltage

• Li-ion battery, designed for 6000 cycles

• Diesel generator can be connected

Product Parameters



Mode PSe5-5 PSe5-10 PSe5-15 PSe10-10 PSe10-15
PV Input Parameters
MPPT Voltage Range 60V-230VDC
PV Charging Current 80A
Max.Charge Current Adjustable OFF/10A/30A/60A/80A
MPPT Efficiency ≥97%
No.of MPPT Inputs
Max.MPPT Input Power 3840W 7680W 7680W 7680W 7680W
Battery Parameters
Battery Type LiFePO4
Battery Voltage Range 45V-56V
Battery Capacity 100Ah 206Ah 293Ah 206Ah 293Ah
Energy 5120Wh 10547Wh 15001Wh 10547Wh 15001Wh
AC Output Parameters
Rated Power 5kW 5kW 5kW 10kW 10kW
Max.Power 15kW 15kW 15kW 30kW 30kW
Output Voltage 200V/210V/220V/230V240V Tuneable
Inverter Output Waveform Pure sine wave
Output Frequency 50Hz/60Hz
Grid Output Voltage 220VAC±10%
Grid Output Frequency Auto
Energy Saving Mode Loss 5W
AC Input Parameters
Grid Voltage 220VAC:160-260VAC/130-280VAC Tuneable
Grid Charging Current OFF/15A/30A/35A/40A(OFF means the mains charging function is switched off)
Grid Input Frequency 45Hz-65Hz Auto
Other Parameters
Operating Mode Utility Priority Mode,Battery Priority Mode,Energy Saving Mode,Unattended,Generator Mode
Screen Working Mode Normal Mode/Open Mode
Screen Display Language CN/EN (Optional)
Conversion Time <5ms
Heat Dissipation Mode Intelligent temperature control
Operating Temperature Range
0℃~40℃
IP Level IP20
Altitude ≤3000m
Size(W*D*H) 570*250*1017 570*250*1170 570*250*1370 570*250*1170 570*250*1370

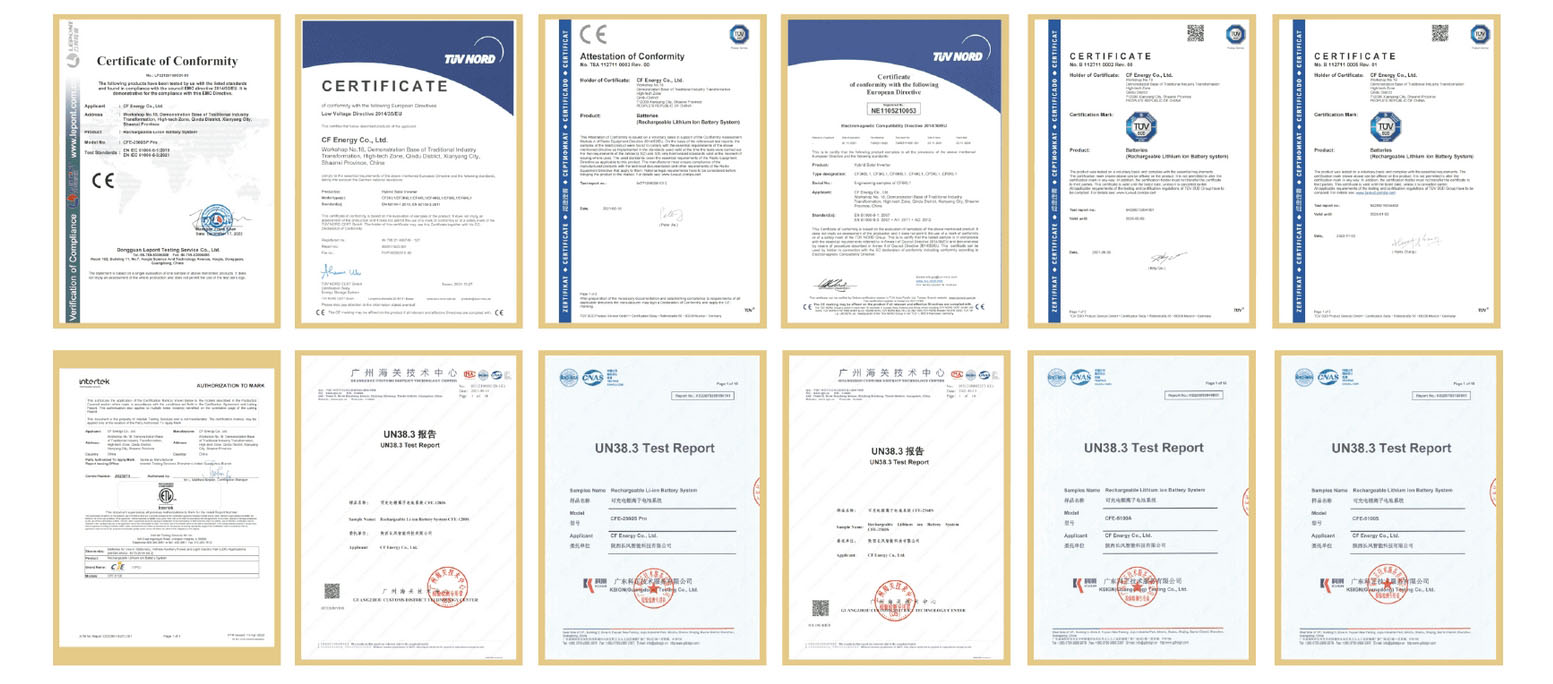

Certification

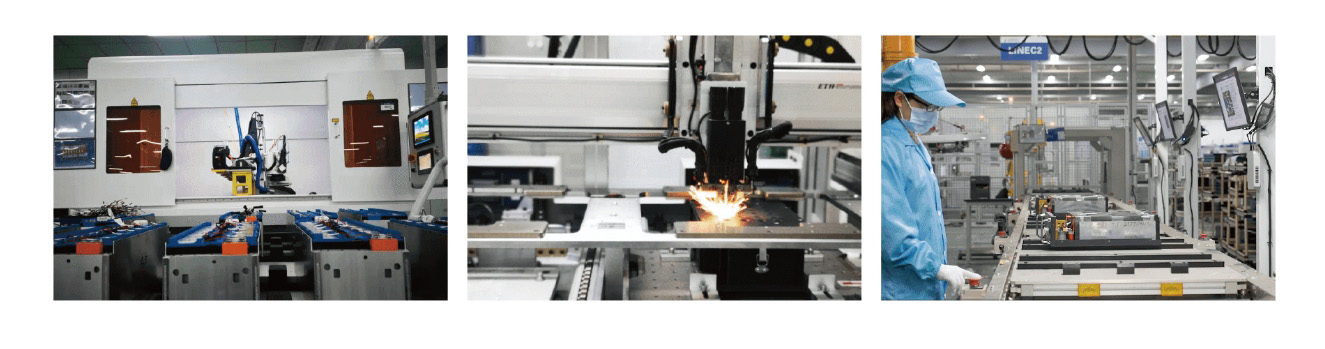

Production Line



About Us



<

Founded in 2010

Owns 488 patents and software copyrights

Over 6,000 large-scale engineering cases

Sold to 18 countries and regions

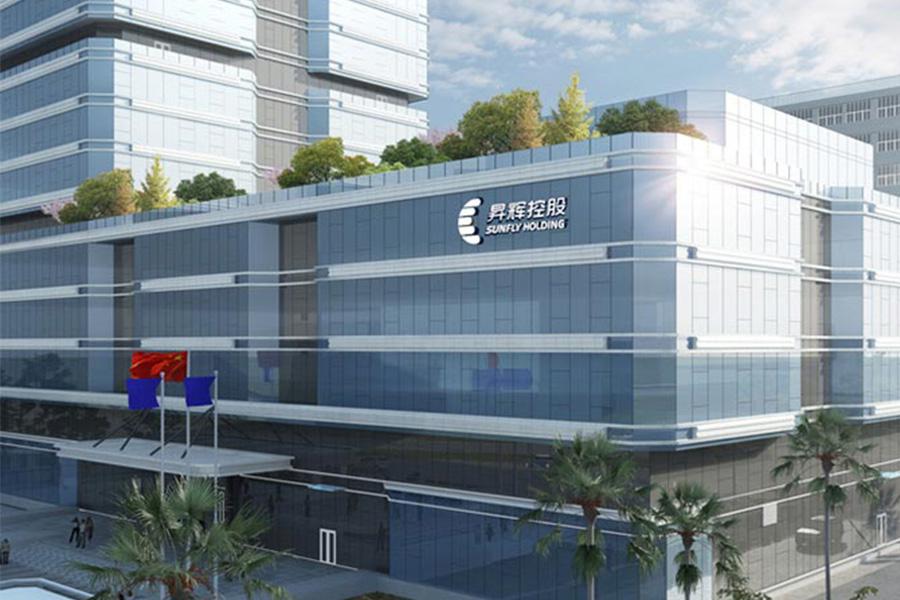

* Enecell started as a new business unit by Sunfly Holding Group (Stock Code: 300423) which was established in 2010.Evolving from the support of Sunfly, ENECELL has become an independent leader in EV charging and residential and commercial energy storage. Committed to sustainability, ENECELL aims to drive green living, energy independence, and carbon reduction through innovative, eco-friendly solutions.



 *As a brand of Shenghui Technology, Enecell specializes in global energy storage, offering a wide range of products including household and portable energy storage systems, mobile charging stations, and micro-grid solutions. Core products include energy storage inverters, integrated systems, and PLC communication control for energy management.



Partnership



Our company has many partners, including ABB,Schneider,Haier,China Mobile and other well-known enterprises. Business and supply chain cooperation covers infrastructure,transportation,new energy,electrical,industrial and mining,real estate,intelligent manufacturing and other fields.
