Customizable 12V LiFePO4 Battery Pack Deep Rechargeable Deep Cycle Lfp4 Batteries
Long Lifespan
Eco-Friendly
High Efficiency
Safe and Durable
Customizable to meet specific energy requirements.
Item NO. :
FM-12V-100AH-300AHSize (mm) :
≥5Warranty :
5 YearsPower :
1.28KWhPayment :
T/TLead Time :
Fastest delivery within 30 daysApplicable Scenarios :
ResidentialVoltage :
12V,24V,36V,48V,72VCustomizable 12V LiFePO4 Battery Pack Deep Rechargeable Deep Cycle Lfp4 Batteries
Customizable 12V LiFePO4 Battery Pack is a reliable, rechargeable deep-cycle energy solution designed for a wide range of applications, including solar systems, RVs, marine, and backup power. Built with advanced LiFePO4 technology, it offers long-lasting performance, safety, and flexibility to meet specific energy needs.
Features
Customizable Design:
Tailored capacity and specifications to suit various applications.
12V LiFePO4 Technology:
High safety, long lifespan, and excellent energy efficiency.
Deep Cycle Performance:
Supports thousands of charge/discharge cycles.
Lightweight and Compact:
Easy to install and transport.
Wide Application:

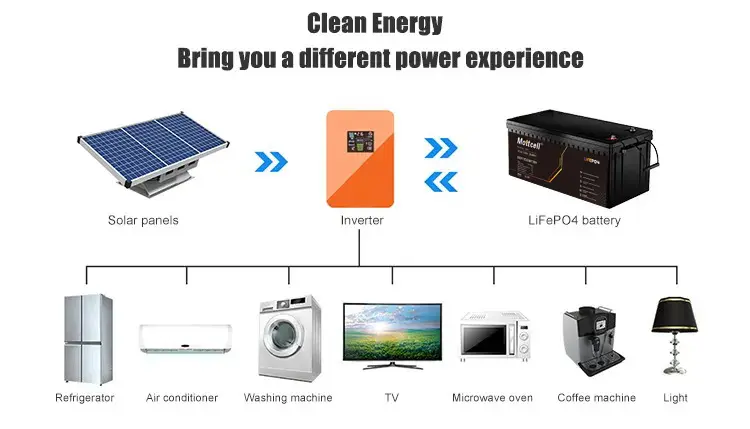

Ideal for solar systems, RVs, boats, and backup power
Specifications
Parameter
|
Name
|
Energy storage battery
|
|
Nominal capacity
|
100-300Ah
|
|
Typical voltage
|
12.8V
|
|
Cycle life
|
6000 Times
|
|
AC impedance resistance (1KHz)
|
≤0.25 mQ
|
|
Continuous charge/discharge
|
1 C/1 C
|
|
Charging temperature
|
0℃~55℃
|
|
Certification
|
CE/BIS/UL
|
|
Weight
|
12-36KG
|
|
Cycle Times
|
6000 Cycles
|
Charge
|
Recommended Charge Current |
50 A |
Nominal Voltage |
12.8 V |
|
Max. Charge Current |
100 A |
Nominal Capacity |
100 Ah |
|
Recommended Charge Voltage |
14.4V |
Capacity @ 20A |
300 min |
|
BMS Charge Cut-Off Voltage |
<14.6 V (3.65V/Cell) |
Energy |
1280Wh |
|
Reconnect Voltage |
>14.2 V(3.55V/Cell) |
Resistance |
<20 mΩ @ 50% SOC |
|
Balancing Voltage |
<14.1V (3.525V/Cell) |
Self-discharge |
<3% / Month |
|
Maximum Batteries in Series |
4 |
Protocol |
Bluetooth (Optional) |
DisCharge
|
Max. Cont. Discharge Current |
100 A |
Dimension(L*W*H) |
329*172"223 mm |
|
Peak Discharge Current |
200 A (5s) |
|
|
|
BMS Discharge Cut-Off Current |
400A±70A(50-150ms) |
Approx, Weight |
24.3 lbs (approx.11 kg) |
|
Recommended Cut-off Voltage |
>11.0 V (2.75V/Cell) |
Terminal Type & Layout |
Tll& Layout A |
|
BMS Discharge Cut-Off Voltage |
>9.2V (2s) (2.3V/Cell) |
Terminal Torque |
80-100 in-lbs (9-11N-m) |
|
Reconnect Voltage |
>10.8 V(2.7V/Cell) |
Case Material |
ABS |
|
Short Circuit Protection |
450-800 μs |
Enclosure Protection |
IP65 |
